B43508A9108M000 - TDK

Description: EPCOS - B43508A9108M000 - Electrolytic Capacitor, Snap-in, 1000 µF, 400 V, ± 20%, Snap-In, 3000 hours @ 105°C

Download B43508A9108M000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B43508A9108M000 - TDK - PCB symbol
click to zoom
PCB Footprints

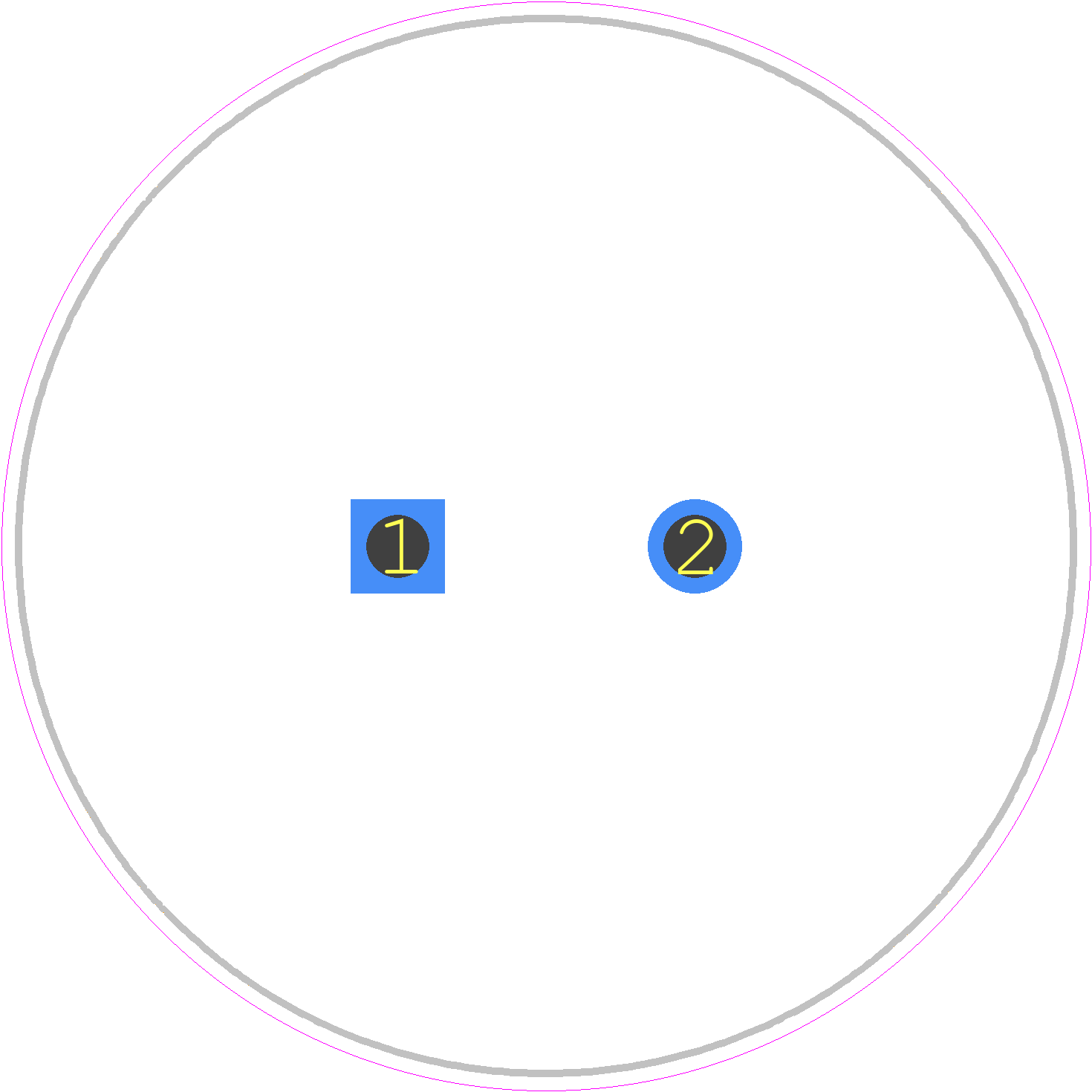

B43508A9108M000 - TDK PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35*55_
click to zoom
3D Models
B43508A9108M000 - TDK - 3D model - Capacitor, Polarized Radial Diameter - 35*55_
click to zoom

B43508A9108M000 Details

  • Manufacturer Part Number:

    B43508A9108M000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    120 mΩ

  • Leakage Current:

    2.5075 mA

  • Length:

    55 mm

  • Manufacturer Series:

    B43508

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    Cardboard

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    2640 mA

  • Series:

    B43508

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

B43508A9108M000 Frequently Asked Questions (FAQs)

  • The recommended land pattern for B43508A9108M000 can be found in the TDK Corporation's recommended footprint document or by contacting TDK's technical support. It's essential to follow the recommended land pattern to ensure proper mounting and to prevent soldering issues.
  • While the B43508A9108M000 is a robust component, it's essential to consider the vibration specifications in your application. TDK Corporation provides vibration testing data, but it's recommended to consult with their technical support to ensure the component meets your specific vibration requirements.
  • To prevent damage during assembly, it's recommended to handle the B43508A9108M000 by the edges, avoid touching the component's surface, and use an anti-static wrist strap or mat. Additionally, follow the recommended soldering temperature and time profiles to prevent thermal damage.
  • The maximum operating temperature range for B43508A9108M000 is typically specified in the datasheet, but it's essential to consider the derating curves and thermal management in your application to ensure the component operates within its specified temperature range.
  • The B43508A9108M000 is designed to operate in a variety of environments, but it's essential to consider the moisture sensitivity level (MSL) and follow the recommended storage and handling procedures to prevent moisture-related issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B43508A9108M000 Overview

Use the download button to access the B43508A9108M000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B4350, or try a keyword search, such as Aluminum Electrolytic Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
