B43509E2227M000 - TDK

Description: Aluminum Electrolytic Capacitors - Snap In 250VDC 220uF 20% PVC STD 6.3mm Term

Download B43509E2227M000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B43509E2227M000 - TDK - PCB symbol
click to zoom
PCB Footprints

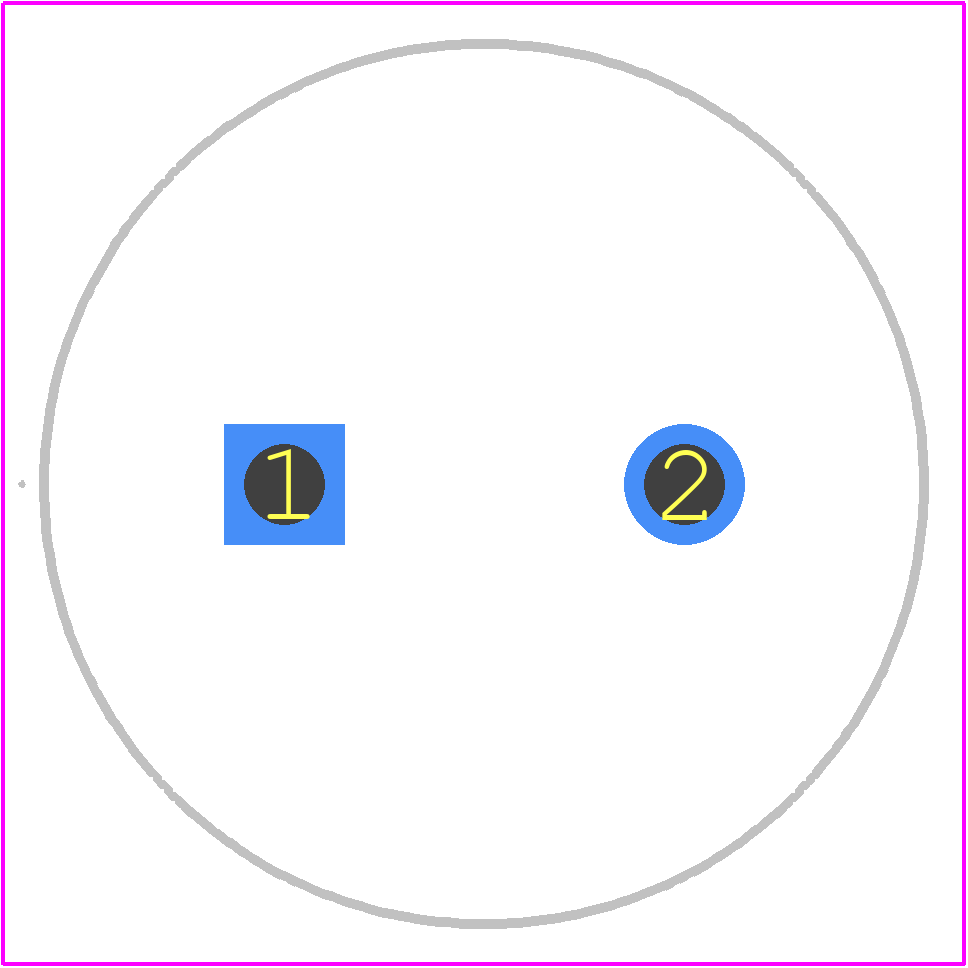

B43509E2227M000 - TDK PCB footprint - Other - Other - B43509E2227M000-2
click to zoom
3D Models
B43509E2227M000 - TDK - 3D model - Other - B43509E2227M000-2
click to zoom

B43509E2227M000 Details

  • Manufacturer Part Number:

    B43509E2227M000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    370 mΩ

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    900 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

B43509E2227M000 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for B43509E2227M000 is between 250°C to 260°C, with a maximum temperature of 260°C for 10 seconds.
  • Yes, the B43509E2227M000 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The moisture sensitivity level of B43509E2227M000 is MSL 2, which means it can be exposed to a relative humidity of 60% at 30°C for 48 hours without damage.
  • Yes, the B43509E2227M000 capacitor is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10G.
  • The equivalent series resistance (ESR) of B43509E2227M000 is 30 mohm maximum at 100 kHz and 20°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B43509E2227M000 Overview

Use the download button to access the B43509E2227M000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B4350, or try a keyword search, such as Ceramic Capacitors
