The recommended land pattern for the B43510A5228M007 can be found in the TDK Corporation's recommended footprint document or by contacting their technical support. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
To prevent damage, it's recommended to handle the B43510A5228M007 by the edges, avoiding touching the component's surface or pins. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage. Additionally, avoid bending or flexing the component during assembly.
The maximum allowable voltage derating for the B43510A5228M007 can be found in the datasheet or by consulting with TDK Corporation's technical support. As a general rule, it's recommended to derate the voltage by 10-20% to ensure reliable operation and to prevent premature failure.
The B43510A5228M007 is rated for operation up to 125°C. However, it's essential to consider the component's temperature derating, which can be found in the datasheet. If your application requires operation above 125°C, you may need to consider a different component or consult with TDK Corporation's technical support for guidance.
The reliability and MTBF (Mean Time Between Failures) of the B43510A5228M007 can be determined by consulting the datasheet, TDK Corporation's reliability reports, or by contacting their technical support. You can also use industry-standard reliability prediction models, such as MIL-HDBK-217 or Telcordia, to estimate the component's reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B43510A5228M007 Overview

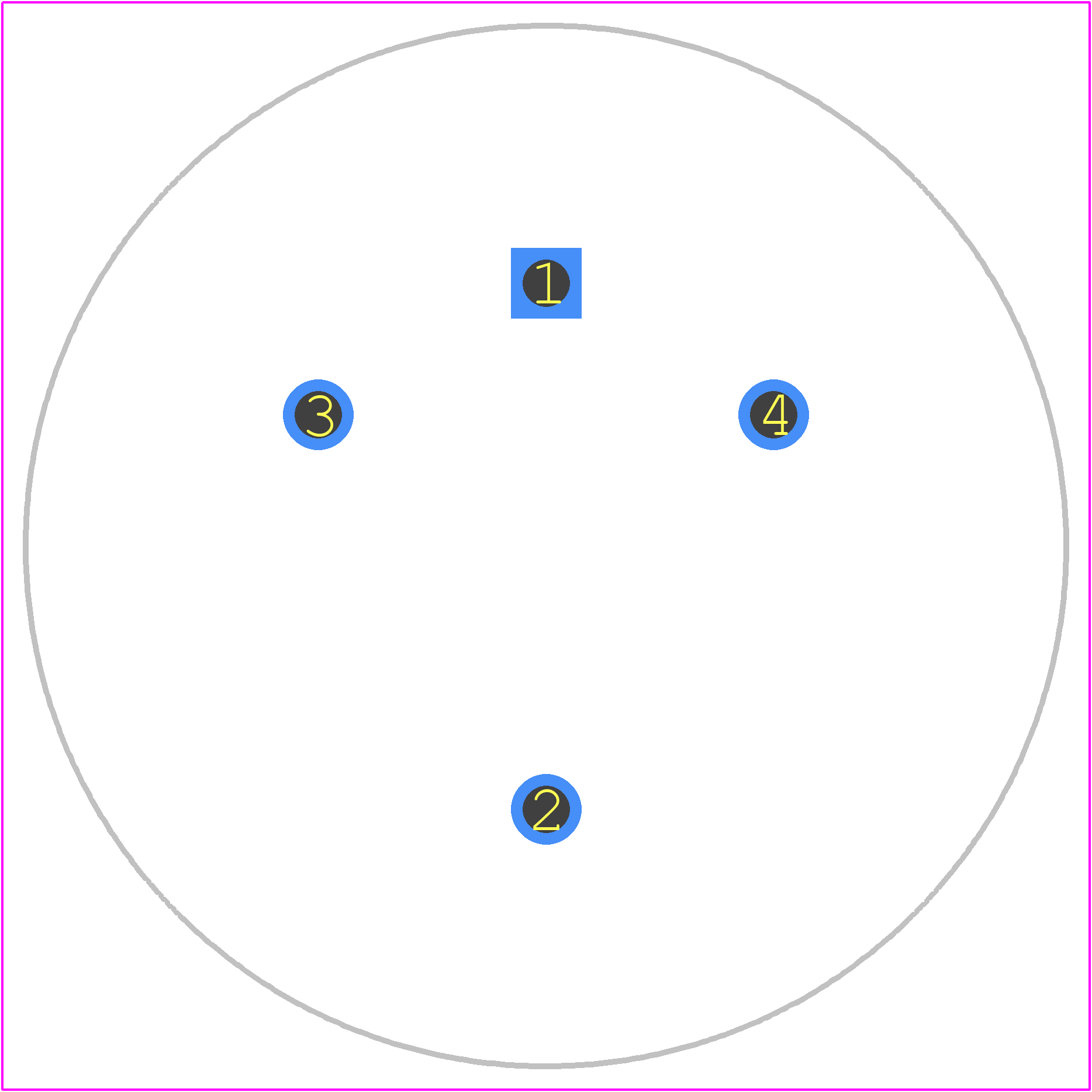

Use the download button to access the B43510A5228M007 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B4351,
or try a keyword search, such as Aluminum Electrolytic Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
