Part Image

B43512B5228M080 - TDK

Description: Capacitors with 4-/5-pin Snap-in Terminals and Solder Pins, 2200µF/450V DC, 50mm dia x 90mm length

Download B43512B5228M080 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B43512B5228M080 - TDK - PCB symbol
click to zoom

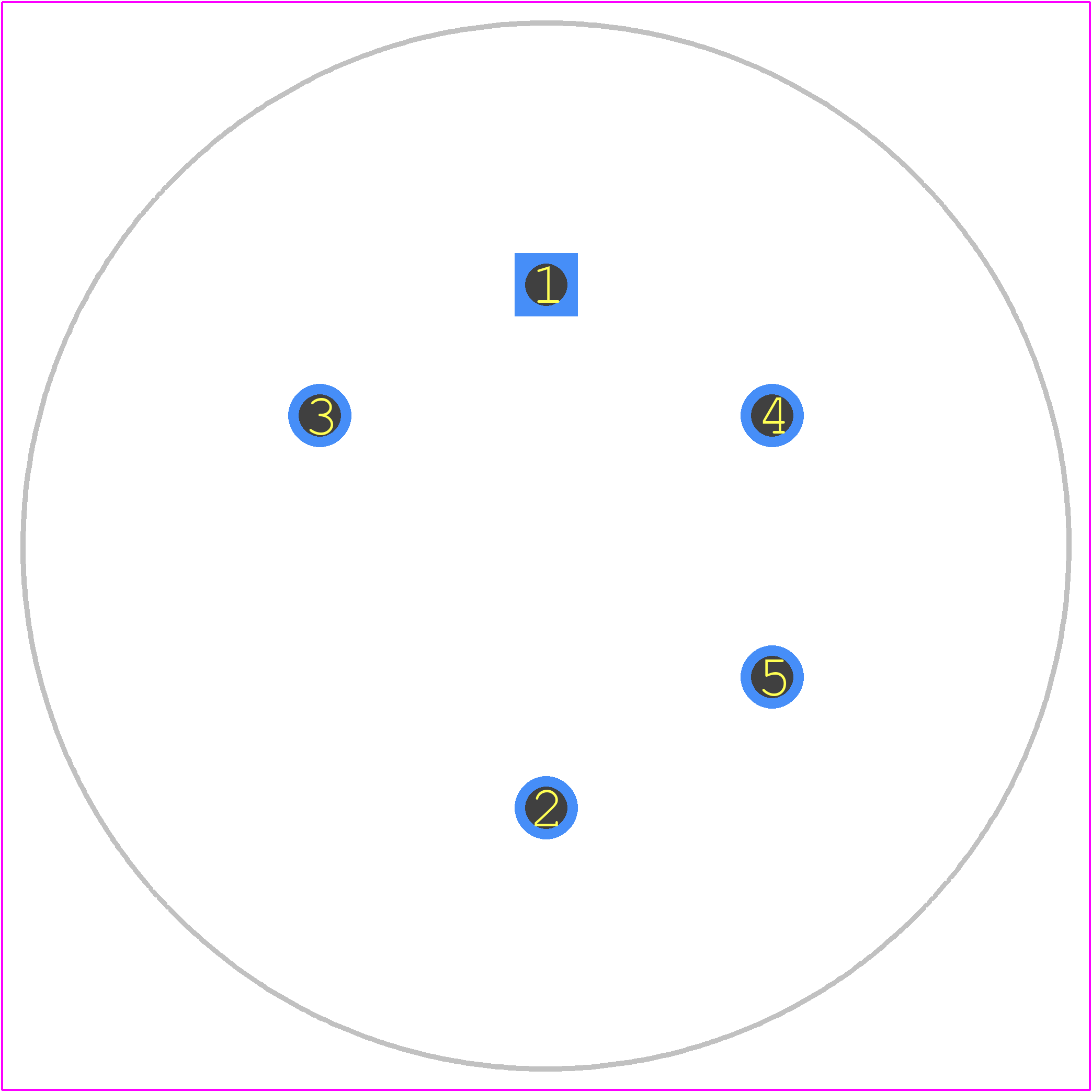

PCB Footprints
B43512B5228M080 - TDK PCB footprint - Other - Other - B43512_(50D)
click to zoom
3D Models
B43512B5228M080 - TDK - 3D model - Other - B43512_(50D)
click to zoom

B43512B5228M080 Details

  • Manufacturer Part Number:

    B43512B5228M080

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK Corporation

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Manufacturer Series:

    B43512

  • Number of Terminals:

    2

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B43512B5228M080 Overview

Use the download button to access the B43512B5228M080 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B4351, or try a keyword search, such as Aluminum Electrolytic Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
