B43630B5337M000 - TDK

Description: Aluminum Electrolytic Capacitors - Snap In 450VDC 330uF 20% PVC STD 6.3mm Term

Download B43630B5337M000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B43630B5337M000 - TDK - PCB symbol
click to zoom

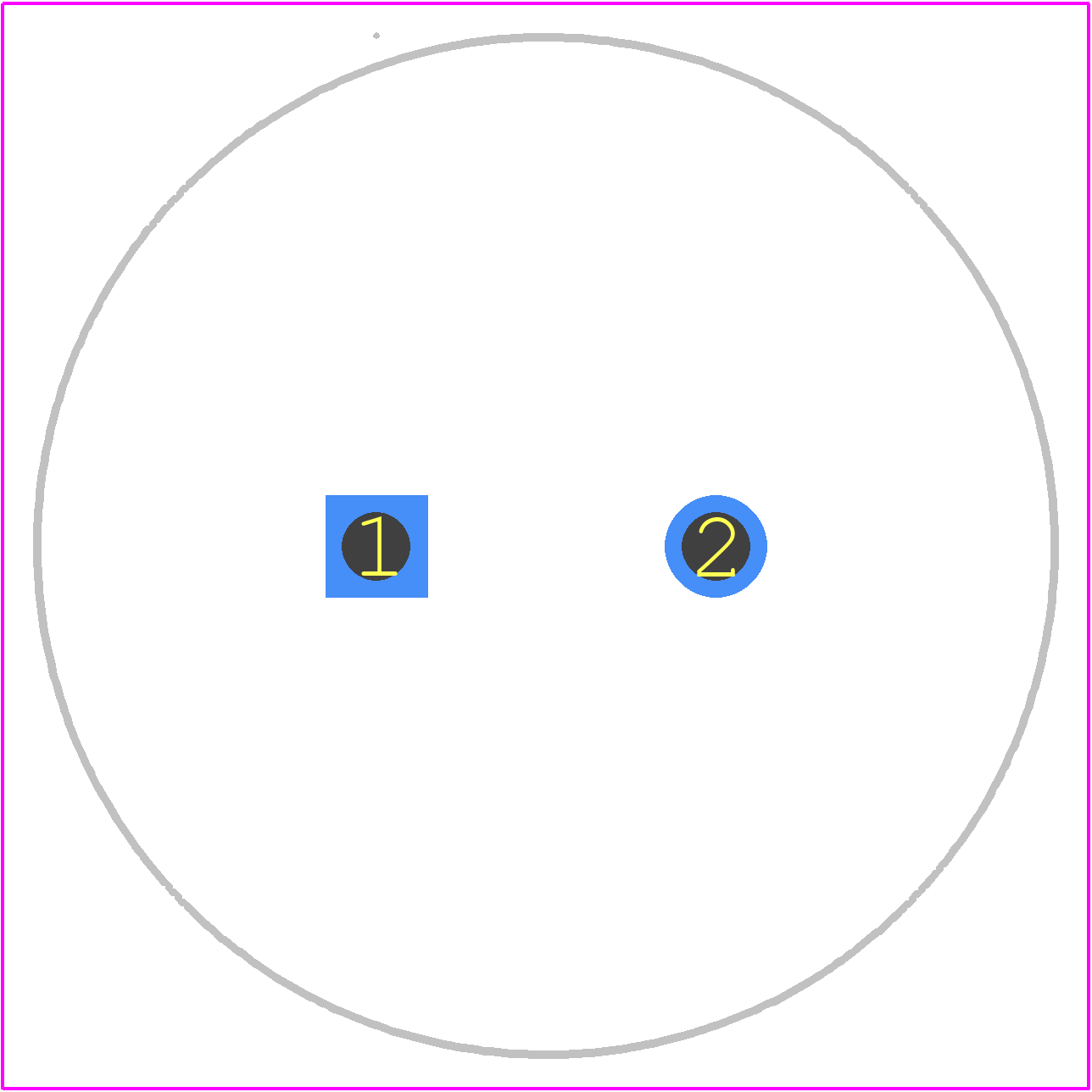

PCB Footprints
B43630B5337M000 - TDK PCB footprint - Other - Other - B43630B5337M000-4
click to zoom
3D Models
B43630B5337M000 - TDK - 3D model - Other - B43630B5337M000-4
click to zoom

B43630B5337M000 Details

  • Manufacturer Part Number:

    B43630B5337M000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    360 mΩ

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1950 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

B43630B5337M000 Frequently Asked Questions (FAQs)

  • TDK recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a minimum of 2°C (3.6°F) per second ramp-up and ramp-down rates.
  • Yes, the B43630B5337M000 is designed to withstand high vibrations and meets the IEC 60068-2-6 standard for vibration resistance. However, it's essential to follow proper mounting and soldering techniques to ensure reliable operation.
  • The ESR of the B43630B5337M000 is relatively low, which means it can handle high-frequency switching and reduce energy losses. However, high ESR can lead to increased heat generation and reduced lifespan. It's essential to consider the ESR when designing the circuit and selecting components.
  • The B43630B5337M000 has a maximum operating temperature of 125°C (257°F). While it can withstand high temperatures, it's essential to derate the capacitor's voltage and current ratings according to the temperature derating curve provided in the datasheet.
  • TDK recommends storing the B43630B5337M000 in a dry, cool place with a temperature range of 5°C to 30°C (41°F to 86°F) and a relative humidity of 20% to 80%. Avoid storing the capacitor in direct sunlight or near heat sources.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B43630B5337M000 Overview

Use the download button to access the B43630B5337M000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B4363, or try a keyword search, such as Ceramic Capacitors
