B43644B9567M000 - TDK

Description: Epcos 560μF 400 V dc Aluminium Electrolytic Capacitor B43644, B43644 Series >175000h 35 (Dia.) x 40mm

Download B43644B9567M000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B43644B9567M000 - TDK - PCB symbol
click to zoom
PCB Footprints

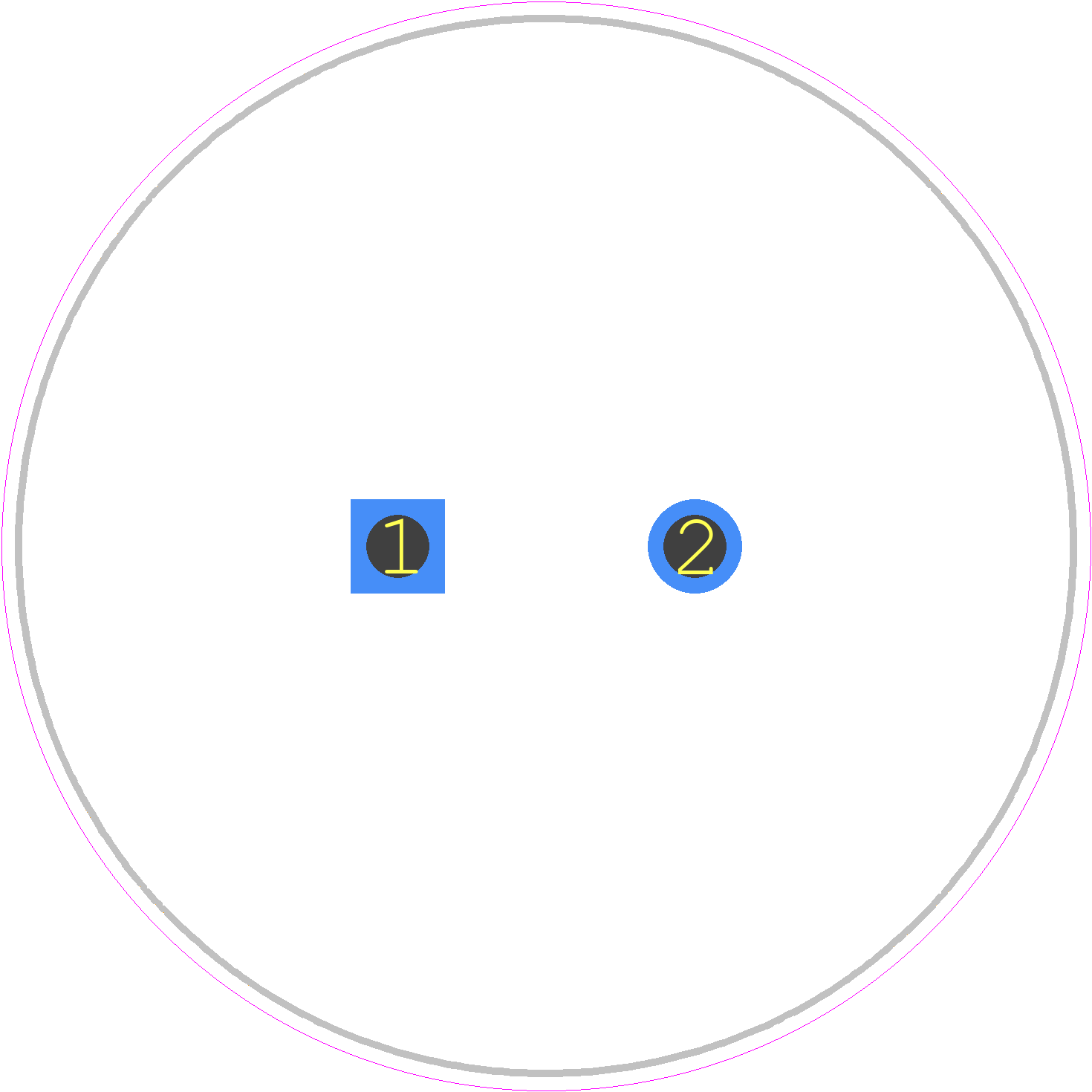

B43644B9567M000 - TDK PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35 X 45mm__
click to zoom
3D Models
B43644B9567M000 - TDK - 3D model - Capacitor, Polarized Radial Diameter - 35 X 45mm__
click to zoom

B43644B9567M000 Details

  • Manufacturer Part Number:

    B43644B9567M000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Capacitance:

    560 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    170 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.6724 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    2300 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    TIN

  • Terminal Shape:

    SNAP-IN

B43644B9567M000 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the B43644B9567M000 is designed to withstand high vibrations and is suitable for use in applications with high mechanical stress, such as automotive and industrial systems.
  • The ESR of the B43644B9567M000 is relatively low, which means it can handle high-frequency switching and reduce energy losses, making it suitable for power supply and filtering applications.
  • Yes, the B43644B9567M000 is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) directives, making it suitable for use in environmentally friendly designs.
