B43644C9227M000 - TDK

Description: Aluminum Electrolytic Capacitors - Snap In 400VDC 220uF 20% PVC STD 6.3mm Term

Download B43644C9227M000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B43644C9227M000 - TDK - PCB symbol
click to zoom
PCB Footprints

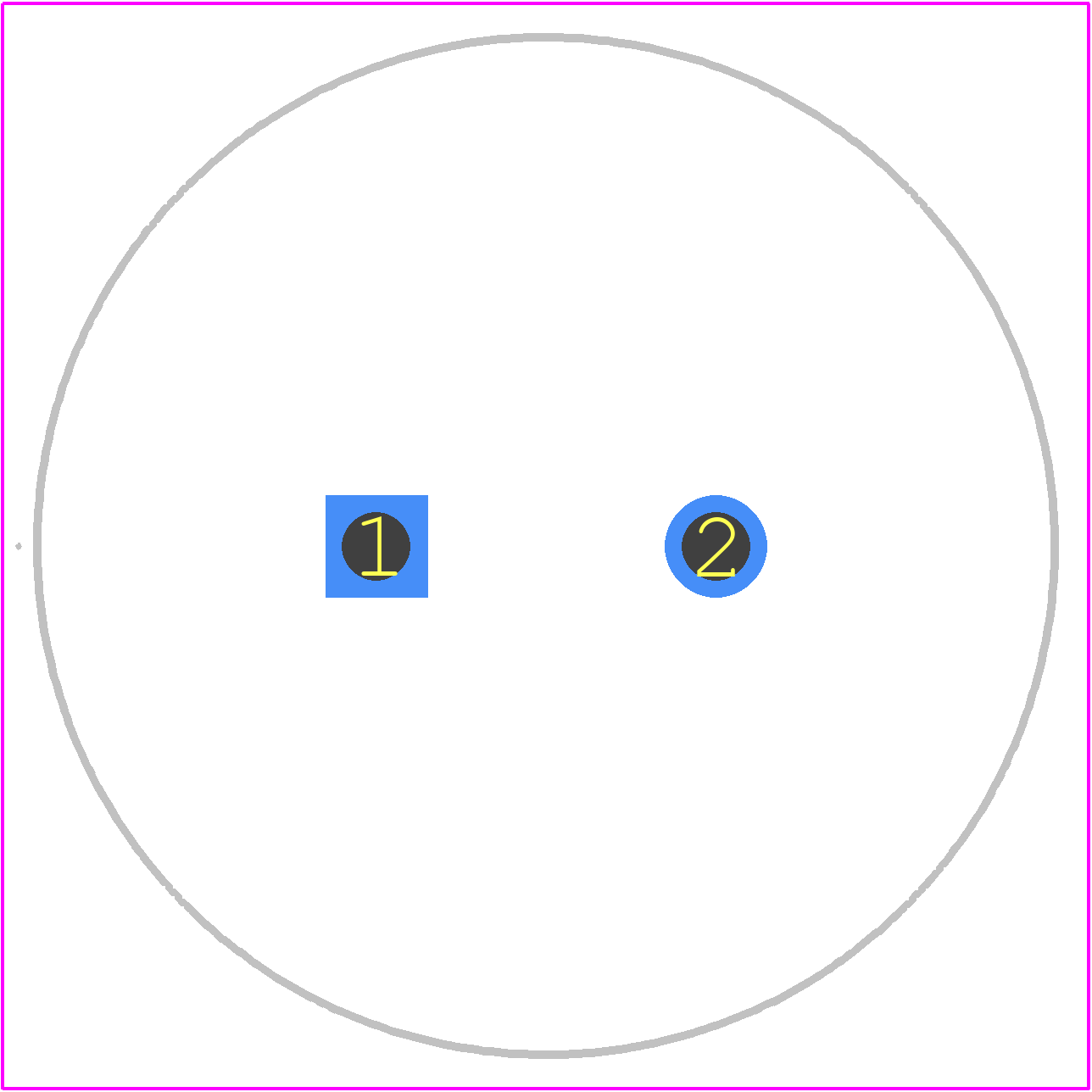

B43644C9227M000 - TDK PCB footprint - Other - Other - B43644C9227M000-1
click to zoom
3D Models
B43644C9227M000 - TDK - 3D model - Other - B43644C9227M000-1
click to zoom

B43644C9227M000 Details

  • Manufacturer Part Number:

    B43644C9227M000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    2

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    410 mΩ

  • JESD-609 Code:

    e3

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1120 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    TIN

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

B43644C9227M000 Frequently Asked Questions (FAQs)

  • TDK recommends a soldering temperature profile with a peak temperature of 260°C for a maximum of 10 seconds, and a minimum of 3°C/s temperature gradient.
  • Yes, this capacitor is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10G.
  • The ESR of the B43644C9227M000 capacitor is typically around 10-20 mΩ, but this value can vary depending on the frequency and operating conditions.
  • Yes, the B43644C9227M000 capacitor is suitable for use in DC-DC converter applications due to its low ESR and high ripple current capability.
  • The MSL of the B43644C9227M000 capacitor is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before reflow soldering.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B43644C9227M000 Overview

Use the download button to access the B43644C9227M000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B4364, or try a keyword search, such as Aluminum Electrolytic Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
