B43890A5685M000 - TDK

Description: Aluminum electrolytic capacitor, Single ended, Extended useful life - 105 °C,6.8uF,450v

Download B43890A5685M000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B43890A5685M000 - TDK - PCB symbol
click to zoom
PCB Footprints

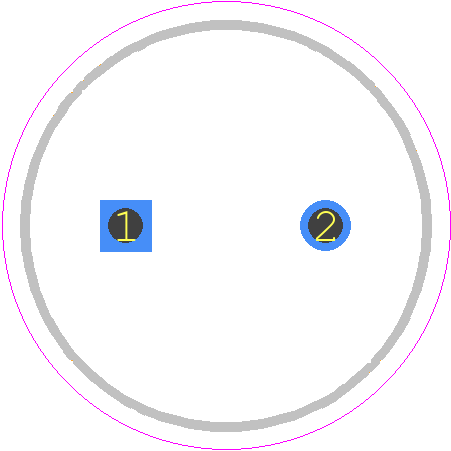

B43890A5685M000 - TDK PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 10X20
click to zoom
3D Models
B43890A5685M000 - TDK - 3D model - Capacitor, Polarized Radial Diameter - 10X20
click to zoom

B43890A5685M000 Details

  • Manufacturer Part Number:

    B43890A5685M000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED, ROHS AND REACH COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Capacitance:

    6.8 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    39000 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.1068 mA

  • Length:

    20 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    262 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.24

  • Terminal Finish:

    MATTE TIN

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

B43890A5685M000 Frequently Asked Questions (FAQs)

  • The recommended land pattern for B43890A5685M000 can be found in the TDK Corporation's recommended footprint document or by contacting TDK's technical support team. The land pattern should ensure proper soldering and thermal management.
  • Handle the component by the edges or the recommended handling areas to prevent damage to the internal components. Avoid touching the component's terminals or applying excessive force, which can cause mechanical stress or electrical damage.
  • The maximum storage temperature for B43890A5685M000 is typically 40°C, and the maximum storage humidity is 90% RH. Exceeding these limits can affect the component's reliability and performance.
  • While B43890A5685M000 is designed to be robust, it's essential to evaluate the component's performance in a high-vibration environment. TDK Corporation may provide additional information or recommendations for vibration testing and design considerations.
  • The expected lifespan of B43890A5685M000 depends on various factors, including operating conditions, temperature, and usage. TDK Corporation may provide reliability data or guidelines for estimating the component's lifespan.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B43890A5685M000 Overview

Use the download button to access the B43890A5685M000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B4389, or try a keyword search, such as Aluminum Electrolytic Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
