B5743-220-M-T-0 - Harwin

Description: Datamate L-Tek: 10+10 Pos Plug DIL Straight 3mm THT Connector no Latches Gold+Tin/Lead (BS)

Download B5743-220-M-T-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

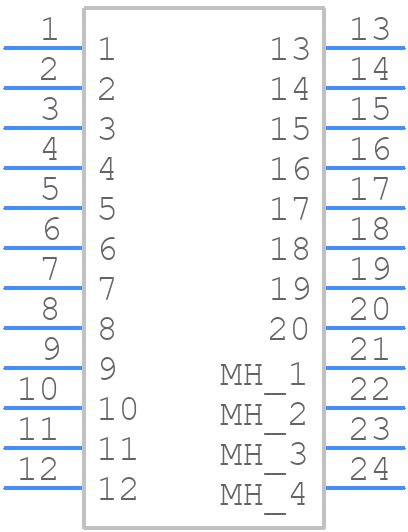

Symbol
B5743-220-M-T-0 - Harwin - PCB symbol
click to zoom

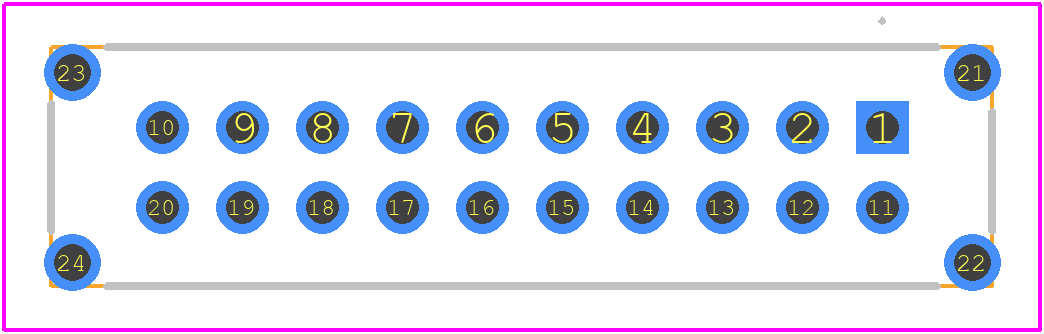

PCB Footprints
B5743-220-M-T-0 - Harwin PCB footprint - Other - Other - B5743-220-M-T-0-1
click to zoom
3D Models
B5743-220-M-T-0 - Harwin - 3D model - Other - B5743-220-M-T-0-1
click to zoom

B5743-220-M-T-0 Details

  • Manufacturer Part Number:

    B5743-220-M-T-0

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e0

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

B5743-220-M-T-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads of the B5743-220-M-T-0 connector is 0.5 Nm to 1.5 Nm, as specified in the Harwin datasheet.
  • Yes, the B5743-220-M-T-0 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration, and 3 axes.
  • The B5743-220-M-T-0 connector has an operating temperature range of -40°C to +125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the connector is properly installed and secured to maintain its performance.
  • Yes, the B5743-220-M-T-0 connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly processes.
  • The B5743-220-M-T-0 connector has a mating cycle life of 500 cycles, ensuring reliable connections and minimizing the risk of wear and tear.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B5743-220-M-T-0 Overview

Use the download button to access the B5743-220-M-T-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B5743, or try a keyword search, such as Headers and Edge Type Connectors
