B5743-226-M-T-1 - Harwin

Description: Datamate L-Tek: 13+13 Pos Plug DIL Straight 3mm THT Connector Latches Gold+Tin/Lead (BS)

Download B5743-226-M-T-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

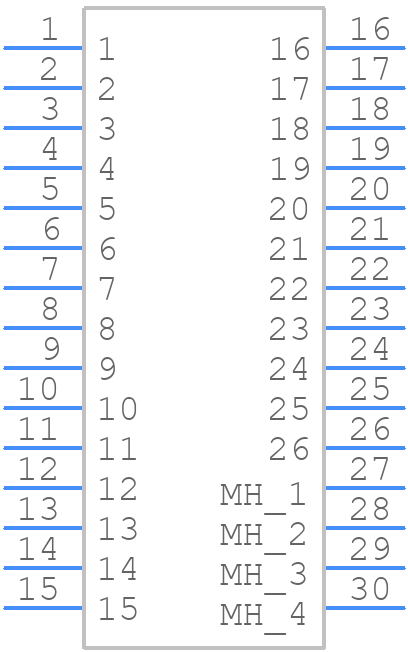

Symbol
B5743-226-M-T-1 - Harwin - PCB symbol
click to zoom

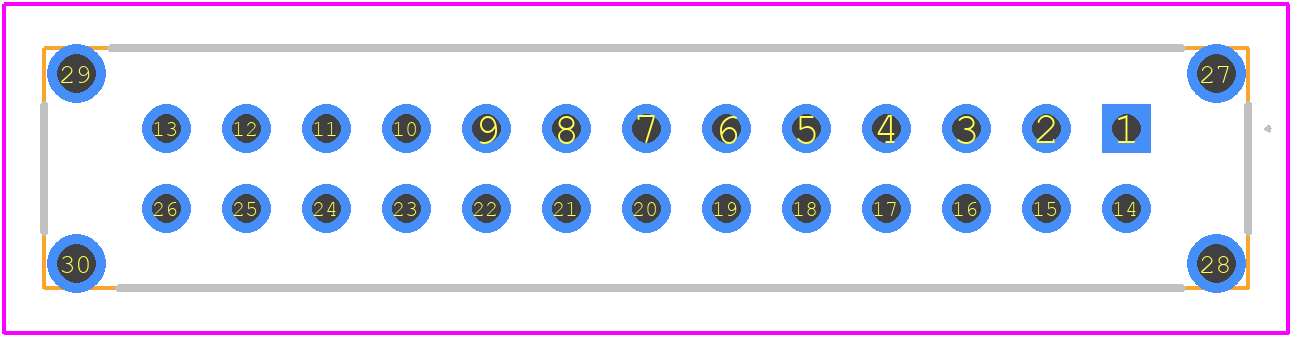

PCB Footprints
B5743-226-M-T-1 - Harwin PCB footprint - Other - Other - B5743-226-M-T-1-1
click to zoom
3D Models
B5743-226-M-T-1 - Harwin - 3D model - Other - B5743-226-M-T-1-1
click to zoom

B5743-226-M-T-1 Details

  • Manufacturer Part Number:

    B5743-226-M-T-1

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • Additional Feature:

    LATCHED

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e0

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0
