B6251F1-NT3G-50 - Amphenol

Description: Conn BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Over Nickel Automotive

Download B6251F1-NT3G-50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

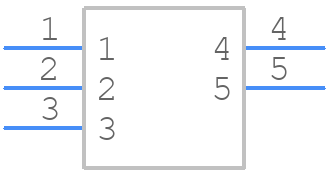

B6251F1-NT3G-50 - Amphenol - PCB symbol
click to zoom
PCB Footprints

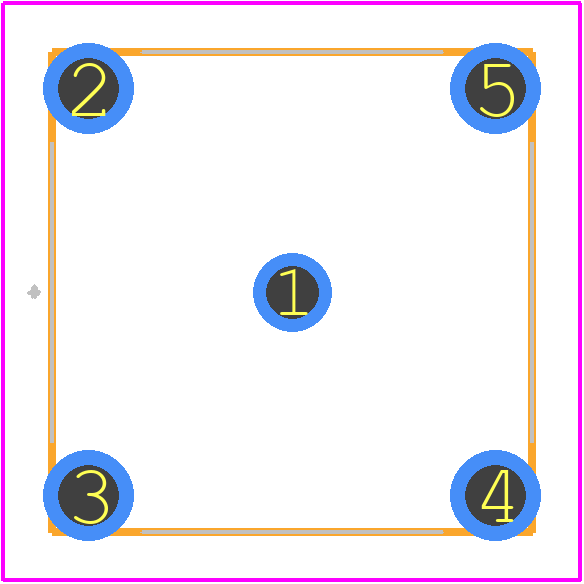

B6251F1-NT3G-50 - Amphenol PCB footprint - Other - Other - B6251F1-NT3G-50-1
click to zoom
3D Models
B6251F1-NT3G-50 - Amphenol - 3D model - Other - B6251F1-NT3G-50-1
click to zoom

B6251F1-NT3G-50 Details

  • Manufacturer Part Number:

    B6251F1-NT3G-50

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Amphenol Corporation

  • Body/Shell Style:

    JACK

  • Connector Type:

    RF BNC CONNECTOR

  • Contact Finish Mating:

    GOLD (3) OVER NICKEL (100)

  • Contact Finish Termination:

    GOLD (3) OVER NICKEL (100)

  • Contact Gender:

    FEMALE

  • Coupling Type:

    BAYONET

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SOLDER

B6251F1-NT3G-50 Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads.
  • Yes, the B6251F1-NT3G-50 is designed to withstand high-vibration environments, but it's recommended to consult with Amphenol's application engineers to ensure the connector meets the specific vibration requirements.
  • The B6251F1-NT3G-50 is designed to operate in temperatures ranging from -55°C to 125°C and can withstand exposure to certain chemicals, but it's essential to consult the datasheet and Amphenol's application engineers to ensure the connector meets the specific environmental requirements.
  • The B6251F1-NT3G-50 has a mating cycle life of 500 cycles, but this can vary depending on the application and usage.
  • The B6251F1-NT3G-50 is designed to be compatible with other Amphenol components, but compatibility with components from other manufacturers may vary. It's recommended to consult with Amphenol's application engineers to ensure compatibility.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B6251F1-NT3G-50 Overview

Use the download button to access the B6251F1-NT3G-50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B6251, or try a keyword search, such as RF BNC Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
