B65804B6010T1 footprint, schematic symbol and 3D model by TDK

Symbol

click to zoom

PCB Footprints

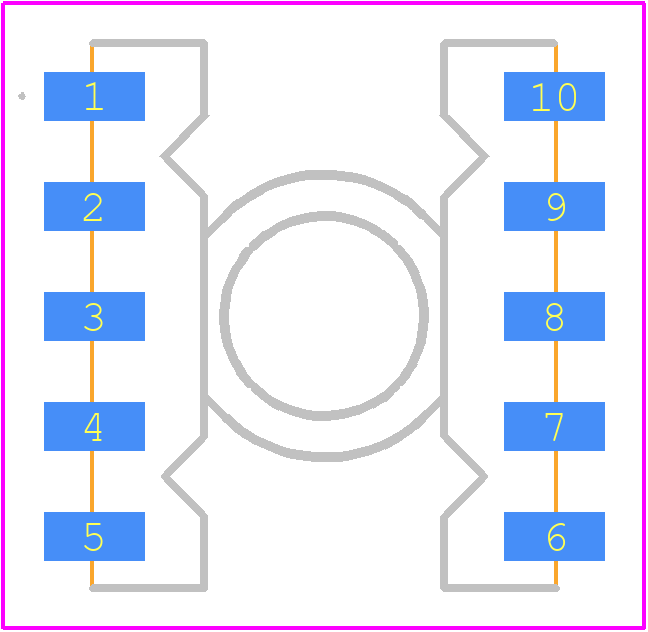

B65804B6010T1 - TDK PCB footprint - Other - Other - B65804B6010T1-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for B65804B6010T1
Part Number B65804B6010T1
Manufacturer TDK
Pin Count 10
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - B65804B6010T1-2
Released Date Nov 18, 2025
Last Modified Date Nov 18, 2025 2:29 PM UTC
Pinout / Pin List Click Here (Member Only)

B65804B6010T1 Details

Manufacturer Part Number:
B65804B6010T1
Manufacturer:
TDK Corporation

Trust Checks

Community Provided

System Verified

Community Approved

B65804B6010T1 Overview

Use the download button to access the B65804B6010T1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like B6580, or try a keyword search, such as RF BNC Connectors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
