TDK recommends a soldering temperature profile with a peak temperature of 260°C for 10-30 seconds, and a maximum of 3 reflows. However, it's always best to consult the specific soldering guidelines provided by TDK or to consult with their technical support team for more detailed information.
The ESR of the B72220S0681K101 capacitor is relatively low, which makes it suitable for high-frequency applications. A lower ESR reduces the energy losses and heat generation, allowing the capacitor to operate more efficiently in high-frequency circuits. However, the exact impact of ESR on performance depends on the specific circuit design and operating conditions.
The B72220S0681K101 capacitor is designed to meet the requirements of IEC 60384-16 for vibration and shock. However, it's essential to consult the datasheet and TDK's technical support team to ensure that the capacitor meets the specific vibration and shock requirements of your application.
The capacitance value of the B72220S0681K101 capacitor follows a typical Class 1 ceramic capacitor temperature characteristic, with a capacitance change of ±1.5% from -55°C to +125°C. However, for more precise information, consult the datasheet or TDK's technical support team.
The B72220S0681K101 capacitor is designed to meet the requirements of AEC-Q200, which makes it suitable for use in automotive and other high-reliability applications. However, it's essential to consult the datasheet and TDK's technical support team to ensure that the capacitor meets the specific requirements of your application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B72220S0681K101 Overview

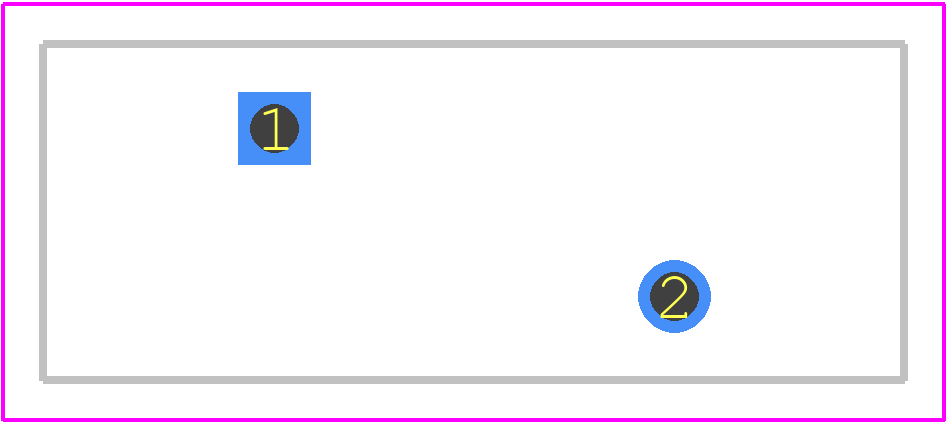

Use the download button to access the B72220S0681K101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B7222,
or try a keyword search, such as Varistor
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
