B72220X2271K501 - TDK

Description: Leaded Disk Varistors, Max. Operating Voltage [AC]=275Vrms, Max. Surge Current Imax(8/20μs,1time)=10000A

Download B72220X2271K501 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B72220X2271K501 - TDK - PCB symbol
click to zoom
PCB Footprints

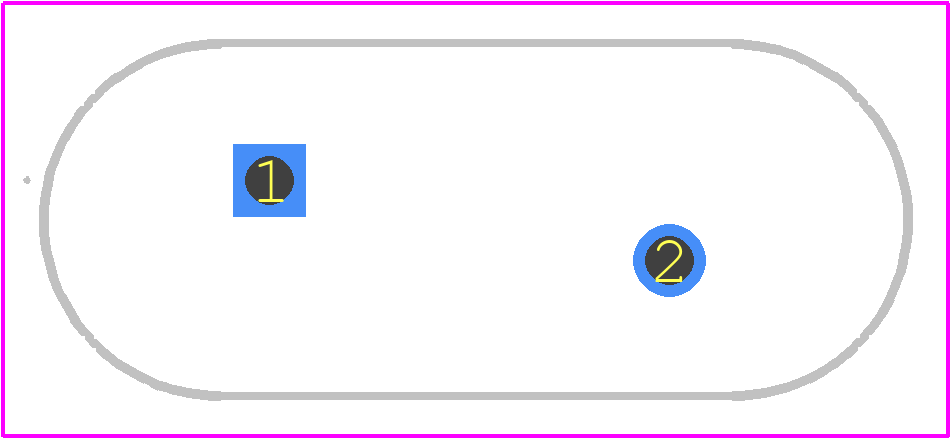

B72220X2271K501 - TDK PCB footprint - Other - Other - SNF20K275E2S5
click to zoom
3D Models
B72220X2271K501 - TDK - 3D model - Other - SNF20K275E2S5
click to zoom

B72220X2271K501 Details

  • Manufacturer Part Number:

    B72220X2271K501

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.75

  • Additional Feature:

    STANDARD: UL; VDE

  • Circuit RMS Voltage-Max:

    275 V

  • Energy Absorbing Capacity-Max:

    215 J

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    30 mm

  • Package Length:

    23.5 mm

  • Package Shape:

    DISK PACKAGE

  • Package Style:

    Radial

  • Package Width:

    8.8 mm

  • Packing Method:

    BULK

  • Rated Power Dissipation (P):

    1 W

  • Reference Standard:

    AEC-Q200; CQC; CSA; IEC

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Working Voltage:

    350 V
