B72225T4271K101 - TDK

Description: ThermoFuse Varistors, Max. Operating voltage [AC]=275Vrms, Max. Surge Current Imax(8/20μs,1time)=20kA

Download B72225T4271K101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

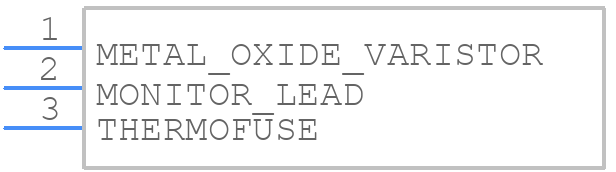

B72225T4271K101 - TDK - PCB symbol
click to zoom
PCB Footprints

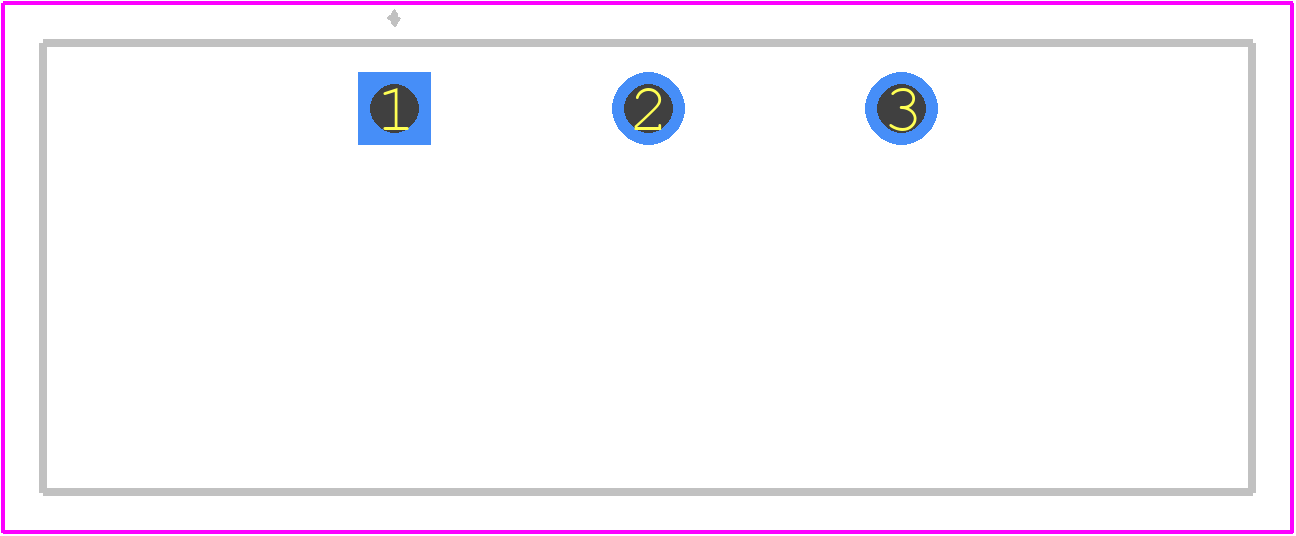

B72225T4271K101 - TDK PCB footprint - Other - Other - B72225T4271K101-2
click to zoom
3D Models
B72225T4271K101 - TDK - 3D model - Other - B72225T4271K101-2
click to zoom

B72225T4271K101 Details

  • Manufacturer Part Number:

    B72225T4271K101

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Circuit RMS Voltage-Max:

    275 V

  • Energy Absorbing Capacity-Max:

    375 J

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    35.2 mm

  • Package Length:

    30.2 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SIP

  • Package Width:

    11.2 mm

  • Packing Method:

    BULK

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    85 °C

  • Reference Standard:

    IEC; UL; VDE

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE FILM

  • Terminal Finish:

    TIN

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Working Voltage:

    350 V

B72225T4271K101 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for B72225T4271K101 is between 250°C to 260°C, with a maximum soldering time of 3 seconds.
  • Yes, the B72225T4271K101 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The ESR of the B72225T4271K101 capacitor is approximately 10 mohm at 100 kHz, which is relatively low and suitable for high-frequency applications.
  • While the B72225T4271K101 capacitor has a maximum operating temperature of 125°C, it's not recommended for high-temperature applications above 105°C due to potential degradation of the capacitor's performance and lifespan.
  • TDK recommends storing B72225T4271K101 capacitors in a dry, cool place with a temperature range of 5°C to 30°C and relative humidity below 70%. Avoid storing them in direct sunlight or near heat sources.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B72225T4271K101 Overview

Use the download button to access the B72225T4271K101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B7222, or try a keyword search, such as Varistor

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
