B78307A9741A003 - TDK

Description: Transformers for IGBT/FET, Gate-drive transformer, 1 output, 100?H, TR=1:0.76

Download B78307A9741A003 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

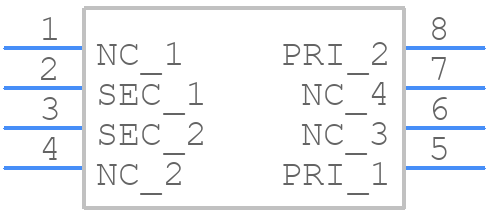

Symbol
B78307A9741A003 - TDK - PCB symbol
click to zoom
PCB Footprints
B78307A9741A003 - TDK PCB footprint - Other - Other - B78307A9741A003-2
click to zoom
3D Models
B78307A9741A003 - TDK - 3D model - Other - B78307A9741A003-2
click to zoom

B78307A9741A003 Details

  • Manufacturer Part Number:

    B78307A9741A003

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    TDK Corporation

  • Additional Feature:

    HEIGHT DIM INCLUDE TERMINAL ALSO

  • Approvals:

    AEC-Q200

  • Height:

    11.35 mm

  • Length:

    11.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    500 kHz

  • Operating Frequency-Min:

    100 kHz

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, BLISTER, 15 INCH

  • Primary Inductance:

    100 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    9.3 mm

B78307A9741A003 Frequently Asked Questions (FAQs)

  • TDK recommends a symmetrical PCB layout with a solid ground plane, and keeping the component away from high-frequency signal lines and heat sources. A minimum of 1mm clearance around the component is recommended.
  • TDK recommends following the derating guidelines in the datasheet, using a thermal interface material (TIM) to improve heat transfer, and ensuring good airflow around the component. Additionally, consider using a thermally conductive PCB material and a heat sink if necessary.
  • The maximum allowable voltage for the B78307A9741A003 is 50V, as specified in the datasheet. Exceeding this voltage may damage the component or affect its reliability.
  • The B78307A9741A003 is designed to operate in a normal environment with a relative humidity of 60% or less. For humid or high-moisture environments, consider using a conformal coating or potting the component to prevent moisture ingress.
  • TDK recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. The component should be soldered using a solder with a melting point of 217°C (423°F) or higher.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B78307A9741A003 Overview

Use the download button to access the B78307A9741A003 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B7830, or try a keyword search, such as SMPS Transformers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
