B78476A8066A003 footprint, schematic symbol and 3D model by TDK

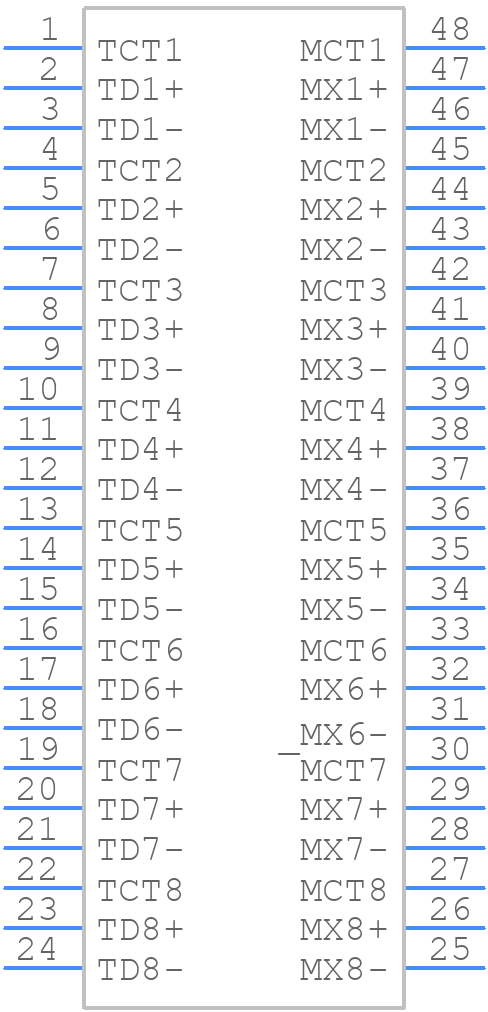

Symbol

click to zoom

PCB Footprints

B78476A8066A003 - TDK PCB footprint - Other - Other - 27.81*12.19*7.49td1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for B78476A8066A003
Part Number B78476A8066A003
Manufacturer TDK
Pin Count 48
Part Category Transformer
Package Category Other
Footprint Name Other - 27.81*12.19*7.49td1
Released Date Oct 13, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

B78476A8066A003 Details

Manufacturer Part Number:
B78476A8066A003
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Factory Lead Time:
12 Weeks
Manufacturer:
TDK Corporation
YTEOL:
8.2
Additional Feature:
HEIGHT DIM INCLUDES TERMINALS ALSO
Application:
LAN; 1000 BASE-T; ETHERNET
Approvals:
UL
Height:
7.24 mm
Isolation Voltage:
1500 V
JESD-609 Code:
e3
Length:
27.81 mm
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Operating Temperature-Max:
70 °C
Packing Method:
TAPE & REEL, BLISTER
Primary Inductance:
350 µH
Surface Mount:
YES
Terminal Finish:
Tin (Sn)
Transformer Type:
DATACOM TRANSFORMER
Turns Ratio (Np:Ns):
1CT:1CT
Width:
12.19 mm

B78476A8066A003 Frequently Asked Questions (FAQs)

TDK recommends a symmetrical PCB layout with a solid ground plane and a minimum of vias to reduce parasitic inductance. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
TDK recommends following the recommended derating curves for temperature and voltage. Additionally, ensure proper thermal management, such as using a heat sink or thermal interface material, to keep the component within its operating temperature range.
The maximum allowable voltage deviation for the B78476A8066A003 is ±10% of the rated voltage. Exceeding this deviation may affect the component's performance and reliability.
Yes, the B78476A8066A003 is designed for high-frequency applications up to 100 kHz. However, ensure that the PCB layout and component selection are optimized for high-frequency operation to minimize parasitic effects.
TDK recommends using proper shielding, such as a metal can or a shielded enclosure, to minimize EMI and RFI emissions. Additionally, ensure that the PCB layout and component selection are designed to minimize radiation and conduction of electromagnetic interference.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

B78476A8066A003 Overview

Use the download button to access the B78476A8066A003 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like B7847, or try a keyword search, such as Pulse/Datacom Transformers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
