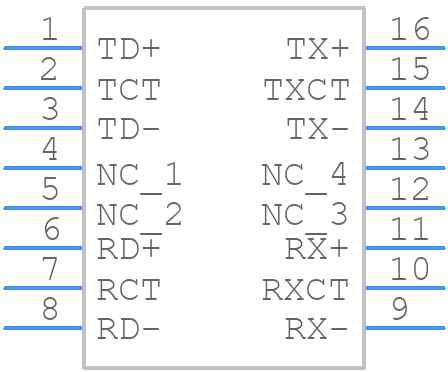

B78476A8247A003 - TDK

B78476A8247A003 Frequently Asked Questions (FAQs)

• What is the recommended land pattern for this component?
  The recommended land pattern for the B78476A8247A003 can be found in the TDK Corporation's application note or the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress.
• How do I handle the component during assembly to prevent damage?
  To prevent damage, handle the component by the body or the tabs, avoiding touching the electrical contacts or the capacitive area. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage.
• What is the maximum allowable voltage derating for this component?
  The maximum allowable voltage derating for the B78476A8247A003 is typically 80% of the rated voltage. However, it's recommended to consult the datasheet or contact TDK Corporation for specific derating guidelines to ensure reliable operation.
• Can I use this component in a high-temperature environment?
  The B78476A8247A003 is rated for operation up to 125°C. However, it's essential to consider the component's temperature coefficient, power derating, and potential thermal runaway when operating in high-temperature environments.
• What is the recommended soldering profile for this component?
  The recommended soldering profile for the B78476A8247A003 follows the IPC-J-STD-020 standard. A typical profile includes a peak temperature of 245°C, with a time above 217°C of 20-40 seconds. However, it's recommended to consult the datasheet or contact TDK Corporation for specific soldering guidelines.
