B82442T1106K000 - TDK

Description: SMD / SMT Inductors (Coils), L=10000μH, 5.6mm x 5.0mm [EIA 2220]

Download B82442T1106K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82442T1106K000 - TDK - PCB symbol
click to zoom
PCB Footprints

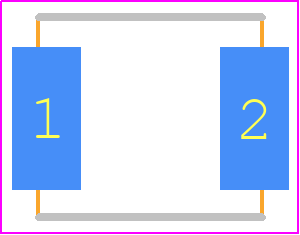

B82442T1106K000 - TDK PCB footprint - Inductors Precision Moulded - Inductors Precision Moulded - B82442T-7
click to zoom
3D Models
B82442T1106K000 - TDK - 3D model - Inductors Precision Moulded - B82442T-7
click to zoom

B82442T1106K000 Details

  • Manufacturer Part Number:

    B82442T1106K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    5

  • Case/Size Code:

    2220

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    112 Ω

  • Inductance-Nom (L):

    10000 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    5 mm

  • Package Length:

    5.6 mm

  • Package Style:

    SMT

  • Package Width:

    5 mm

  • Packing Method:

    TR, BLISTER, 13 INCH

  • Quality Factor-Min (at L-nom):

    25

  • Rated Current-Max:

    0.046 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    0.5 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    J BEND

  • Test Frequency:

    0.0796 MHz

  • Tolerance:

    10%

B82442T1106K000 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the B82442T1106K000 can be found in the TDK Corporation's application note or footprint library. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and electrical issues.
  • The thermal derating of the B82442T1106K000 inductor is typically handled by reducing the current rating as the operating temperature increases. TDK Corporation provides thermal derating curves in the datasheet or application notes. Engineers should consult these resources to determine the maximum current rating at their specific operating temperature.
  • The self-resonant frequency (SRF) of the B82442T1106K000 inductor is not typically provided in the datasheet. However, engineers can estimate the SRF by using the inductor's inductance value and the parasitic capacitance. TDK Corporation may provide SRF data upon request or through their technical support channels.
  • The B82442T1106K000 inductor is designed for general-purpose use, but its high-frequency performance may not be optimal. Engineers should consult TDK Corporation's high-frequency inductor offerings or consider alternative components specifically designed for high-frequency applications.
  • To ensure the reliability of the B82442T1106K000 inductor in a high-reliability application, engineers should follow TDK Corporation's recommended storage and handling procedures, operate the inductor within its specified ratings, and consider using components with higher reliability ratings or specialized high-reliability inductors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B82442T1106K000 Overview

Use the download button to access the B82442T1106K000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8244, or try a keyword search, such as Fixed Inductors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
