B82462A4332M000 - TDK

Description: Inductor Power Wirewound 3.3uH 20% 100KHz Ferrite 2A 0.06Ohm DCR Automotive T/R

Download B82462A4332M000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82462A4332M000 - TDK - PCB symbol
click to zoom
PCB Footprints

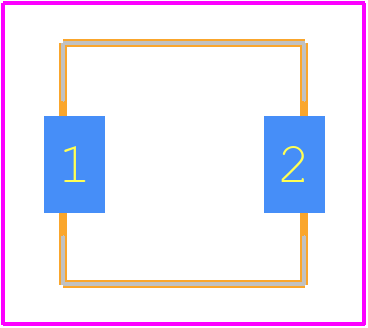

B82462A4332M000 - TDK PCB footprint - Other - Other - B82462A4332M000-4
click to zoom
3D Models
B82462A4332M000 - TDK - 3D model - Other - B82462A4332M000-4
click to zoom

B82462A4332M000 Details

  • Manufacturer Part Number:

    B82462A4332M000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7.4

  • Case/Size Code:

    2424

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.06 Ω

  • Inductance-Nom (L):

    3.3 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    3 mm

  • Package Length:

    6 mm

  • Package Style:

    SMT

  • Package Width:

    6 mm

  • Packing Method:

    TR, Blister, 13 Inch

  • Rated Current-Max:

    2 A

  • Reference Standard:

    AEC-Q200

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN SILVER OVER NICKEL

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    L BEND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

B82462A4332M000 Frequently Asked Questions (FAQs)

  • The recommended land pattern for B82462A4332M000 can be found in the TDK Corporation's recommended footprint document or by contacting their technical support. It's essential to follow the recommended land pattern to ensure proper mounting and to prevent soldering issues.
  • While the B82462A4332M000 is a robust component, it's essential to consider the vibration specifications in your application. TDK Corporation provides vibration testing data, but it's recommended to consult with their technical support to ensure the component meets your specific vibration requirements.
  • The B82462A4332M000 is an ESD-sensitive component. To handle it safely, follow proper ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensure that all equipment and tools are properly grounded.
  • The maximum operating temperature range for B82462A4332M000 is -40°C to +125°C. However, it's essential to consider the derating curves and temperature coefficients to ensure the component operates within the specified parameters in your application.
  • The B82462A4332M000 is designed to operate in a normal environment, but it's not suitable for use in humid or moist environments. If your application requires operation in such conditions, consider using a component with a higher moisture sensitivity level or applying conformal coating to protect the component.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B82462A4332M000 Overview

Use the download button to access the B82462A4332M000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8246, or try a keyword search, such as Fixed Inductors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
