B82464A4154K000 - TDK

Description: SMD / SMT Inductors (Coils), L=150μH, 10.4mm x 10.4mm

Download B82464A4154K000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82464A4154K000 - TDK - PCB symbol
click to zoom
PCB Footprints

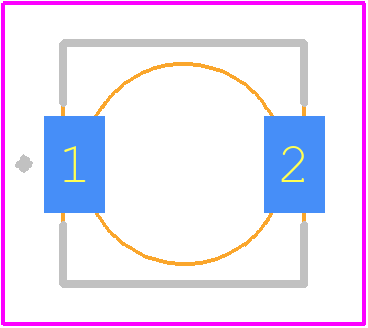

B82464A4154K000 - TDK PCB footprint - Other - Other - B82462A
click to zoom
3D Models
B82464A4154K000 - TDK - 3D model - Other - B82462A
click to zoom

B82464A4154K000 Details

  • Manufacturer Part Number:

    B82464A4154K000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Case/Size Code:

    4141

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.4 Ω

  • Inductance-Nom (L):

    150 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    4.8 mm

  • Package Length:

    10.4 mm

  • Package Style:

    SMT

  • Package Width:

    10.4 mm

  • Packing Method:

    TR, Blister, 13 Inch

  • Rated Current-Max:

    0.86 A

  • Reference Standard:

    AEC-Q200

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN SILVER OVER NICKEL

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    10%
