B82472P6222M000 - TDK

Description: SMD / SMT Inductors (Coils), L=2.2μH, 7.3mm x 7.3mm

Download B82472P6222M000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B82472P6222M000 - TDK - PCB symbol
click to zoom
PCB Footprints

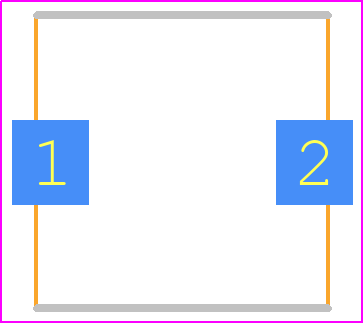

B82472P6222M000 - TDK PCB footprint - Inductors Precision Moulded - Inductors Precision Moulded - B82472P6_1-5
click to zoom
3D Models
B82472P6222M000 - TDK - 3D model - Inductors Precision Moulded - B82472P6_1-5
click to zoom

B82472P6222M000 Details

  • Manufacturer Part Number:

    B82472P6222M000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6.9

  • Case/Size Code:

    2929

  • Construction:

    Magnetically Shielded

  • Core Material:

    FERRITE

  • DC Resistance:

    0.022 Ω

  • Inductance-Nom (L):

    2.2 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    4.5 mm

  • Package Length:

    7.3 mm

  • Package Style:

    SMT

  • Package Width:

    7.3 mm

  • Packing Method:

    TR, Blister, 13 Inch

  • Rated Current-Max:

    3 A

  • Reference Standard:

    AEC-Q200

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

B82472P6222M000 Frequently Asked Questions (FAQs)

  • The recommended land pattern for B82472P6222M000 can be found in the TDK Corporation's recommended footprint document or by contacting TDK's technical support. The land pattern should ensure a secure and reliable connection to the PCB.
  • To prevent damage, handle the component by the edges, avoid touching the terminals, and use an anti-static wrist strap or mat. Also, ensure the assembly process follows the recommended soldering profile and handling guidelines provided by TDK Corporation.
  • The maximum operating temperature range for B82472P6222M000 is -40°C to +125°C, as specified in the datasheet. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within the specified temperature range.
  • While B82472P6222M000 is a robust component, it's essential to evaluate the vibration resistance according to the specific application requirements. TDK Corporation provides vibration testing data and guidelines for their components. Consult with TDK's technical support for specific guidance on using B82472P6222M000 in high-vibration environments.
  • B82472P6222M000 meets various safety and regulatory standards, such as AEC-Q200 and IATF 16949. Ensure compliance by following the recommended application guidelines, and consult with TDK Corporation's technical support for specific certification and compliance information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B82472P6222M000 Overview

Use the download button to access the B82472P6222M000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8247, or try a keyword search, such as Fixed Inductors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
