TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic effects, and reduce electromagnetic interference (EMI).
While the datasheet provides some information on high-frequency characteristics, it's essential to consult TDK's application notes and simulation models to understand the inductor's behavior under high-frequency switching conditions. This includes core losses, winding losses, and self-resonance.
The datasheet specifies the rated voltage, but it's crucial to consider the maximum allowable voltage across the inductor, including voltage spikes and surges. TDK recommends derating the voltage to ensure reliable operation and prevent damage.
While the datasheet provides temperature ratings, it's essential to understand the inductor's performance under high-temperature conditions, including changes in inductance, resistance, and core losses. TDK provides temperature derating curves and guidelines for high-temperature applications.
To prevent damage and ensure reliability, it's essential to follow TDK's recommended storage and handling procedures, including proper packaging, storage conditions, and handling techniques to prevent mechanical stress and electrostatic discharge (ESD).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B82559B7103A027 Overview

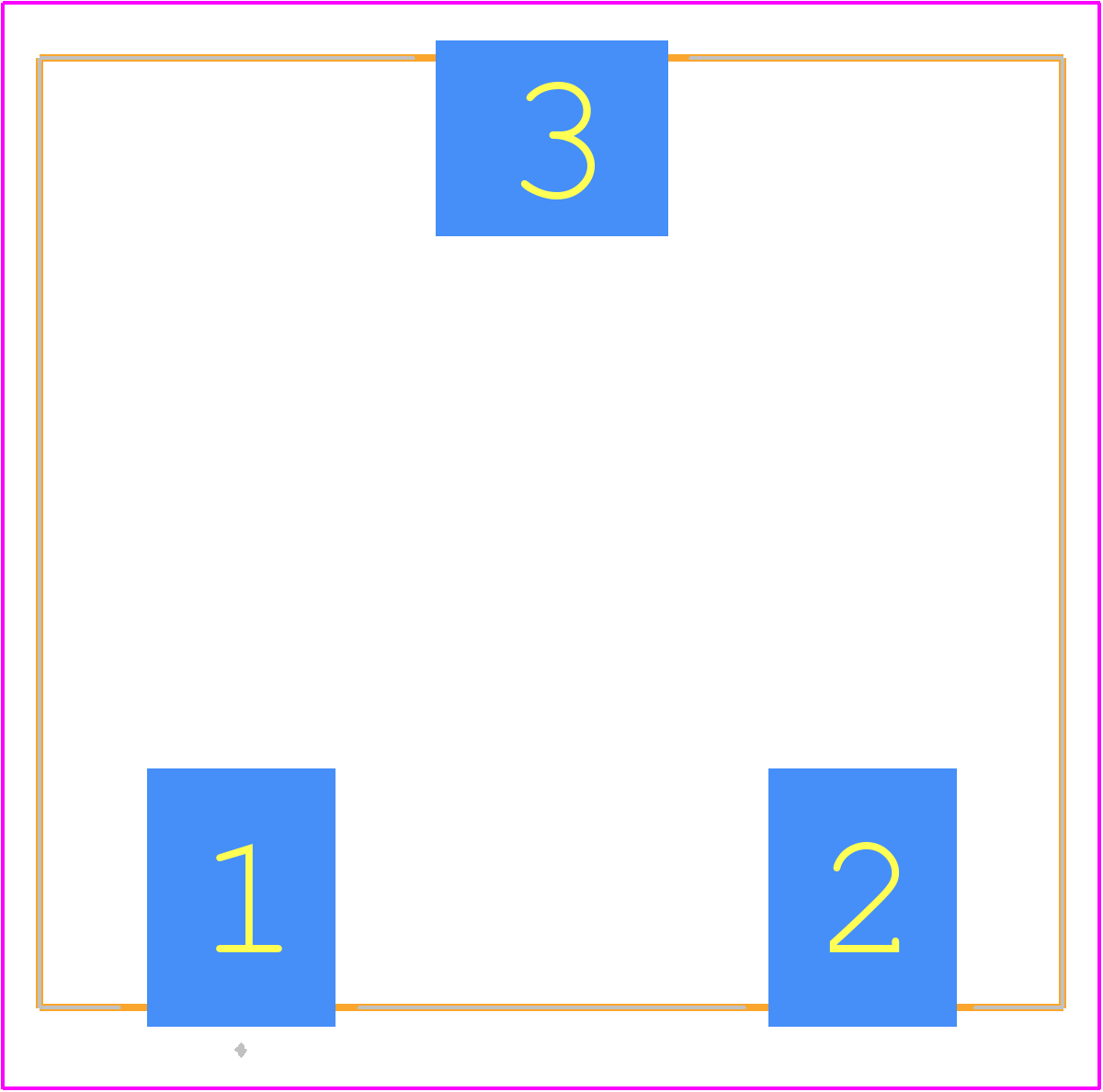

Use the download button to access the B82559B7103A027 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8255,
or try a keyword search, such as Fixed Inductors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
