The recommended land pattern for the B82625B2502M001 can be found in the TDK Corporation's datasheet or in the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.
Handle the B82625B2502M001 inductor by the body, avoiding touching the leads or the core. Use anti-static wrist straps, mats, or other ESD protection methods to prevent damage from static electricity. Avoid bending or flexing the leads, and ensure the component is properly seated on the PCB during assembly.
The maximum operating temperature range for the B82625B2502M001 is -40°C to +125°C. However, the inductor's characteristics, such as inductance and Q factor, may vary depending on the operating temperature. Refer to the datasheet for more information on temperature-related specifications.
The B82625B2502M001 inductor is designed to withstand moderate vibration levels. However, if your application involves high-vibration environments, you should consider using additional mechanical support or securing the component to the PCB using adhesives or other methods to prevent mechanical stress and ensure reliability.
To determine the correct current rating, consider the maximum current required by your circuit, as well as the inductor's DC resistance, inductance, and saturation characteristics. Refer to the datasheet and application notes for guidance on selecting the appropriate current rating for your specific use case.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B82625B2502M001 Overview

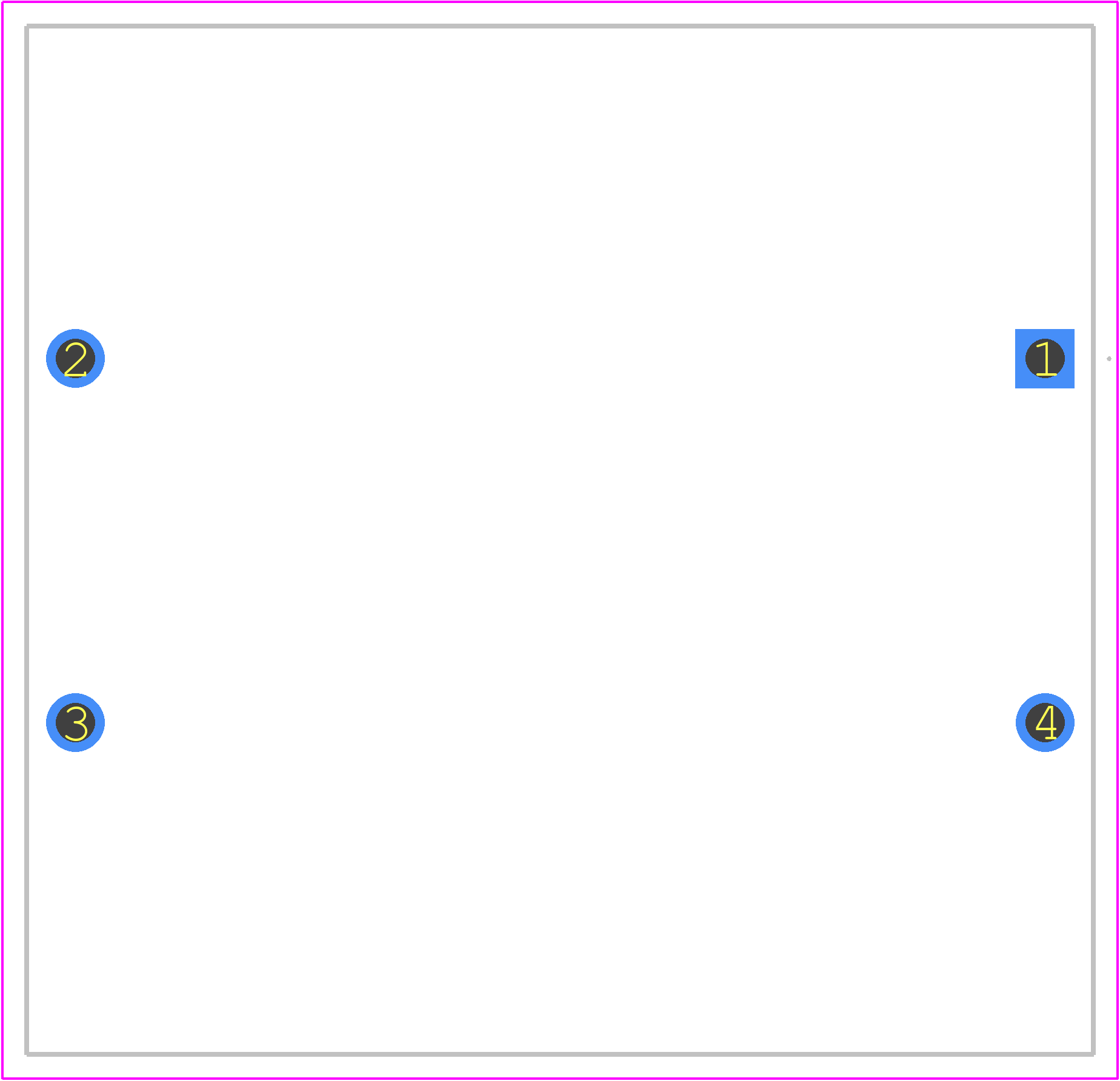

Use the download button to access the B82625B2502M001 schematic symbol, PCB footprint, and 3D model.
