TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper performance and minimize parasitic effects.
While the datasheet provides some information on high-frequency characteristics, it's essential to consult TDK's application notes and simulation models to understand the inductor's behavior under specific switching conditions. Additionally, consider consulting with TDK's technical support or performing your own simulations and testing.
The SRF is typically not specified in the datasheet, but it can be estimated using the inductor's L and C values. The SRF can affect circuit performance, especially in high-frequency applications. Consult TDK's application notes or technical support for guidance on SRF and its impact on your specific design.
The core material used in the B82734R2262B030 inductor is a ferrite-based material. Ferrite cores are known for their high saturation point, low core loss, and high reliability. However, they can be prone to cracking or degradation under extreme environmental conditions. Consult TDK's documentation and technical support for more information on the core material and its implications for your design.
The datasheet provides some thermal information, but it's essential to consider the inductor's thermal characteristics, such as its thermal resistance and maximum operating temperature, to ensure reliable performance. Consult TDK's application notes and technical support for guidance on thermal design and management.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B82734R2262B030 Overview

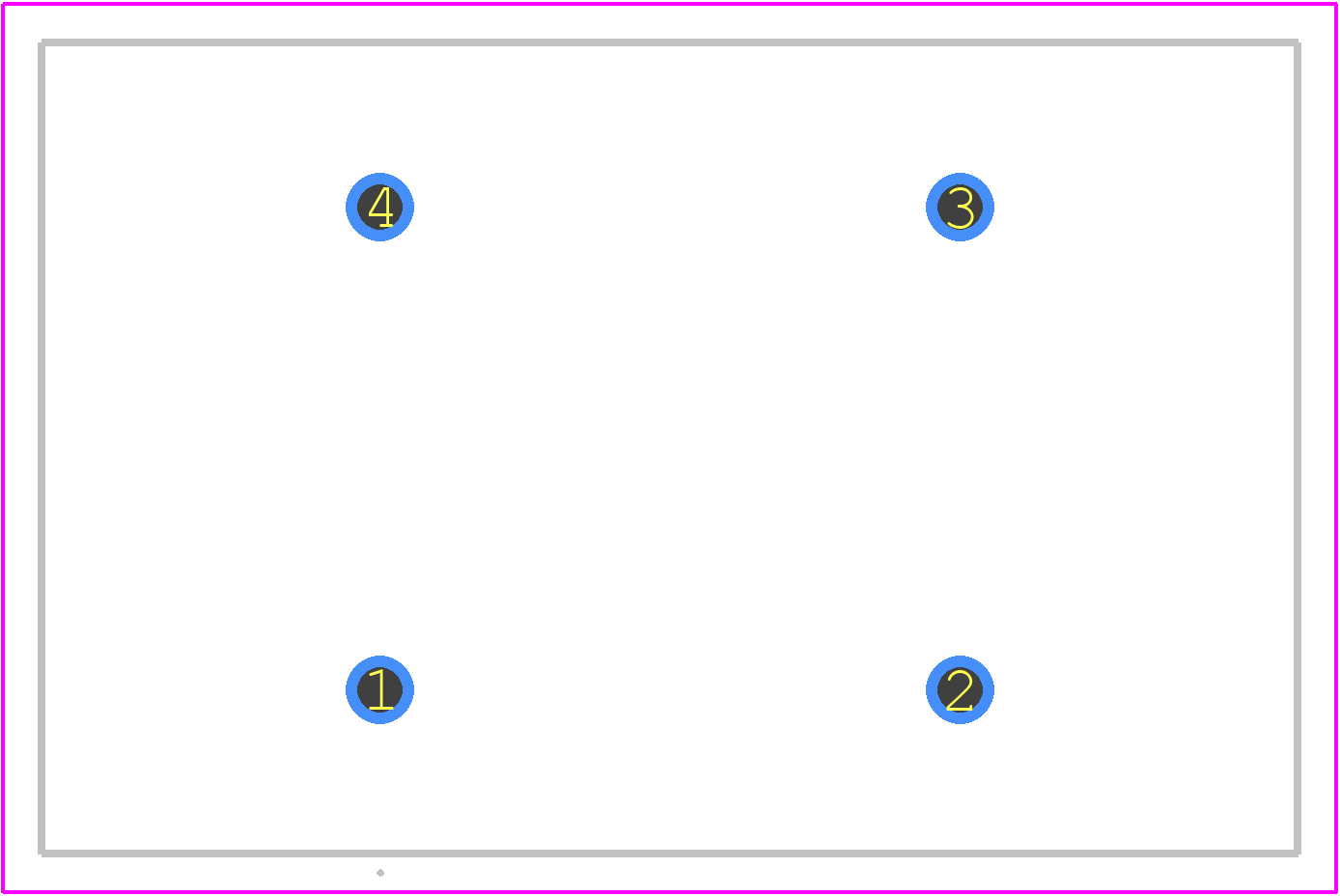

Use the download button to access the B82734R2262B030 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8273,
or try a keyword search, such as Fixed Inductors
