B82747E6253A040 - TDK

B82747E6253A040 Details

• Manufacturer Part Number:

  B82747E6253A040

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  RADIAL LEADED

• Country Of Origin:

  India

• ECCN Code:

  EAR99

• HTS Code:

  8504.50.80.00

• Manufacturer:

  TDK Corporation

• YTEOL:

  7

• Construction:

  Rectangular

• Core Material:

  FERRITE

• DC Resistance:

  0.0028 Ω

• Inductance-Nom (L):

  1000 µH

• Inductor Application:

  POWER INDUCTOR

• Inductor Type:

  GENERAL PURPOSE INDUCTOR

• JESD-609 Code:

  e3

• Lead Diameter:

  2.24 mm

• Lead Length:

  4 mm

• Number of Functions:

  3

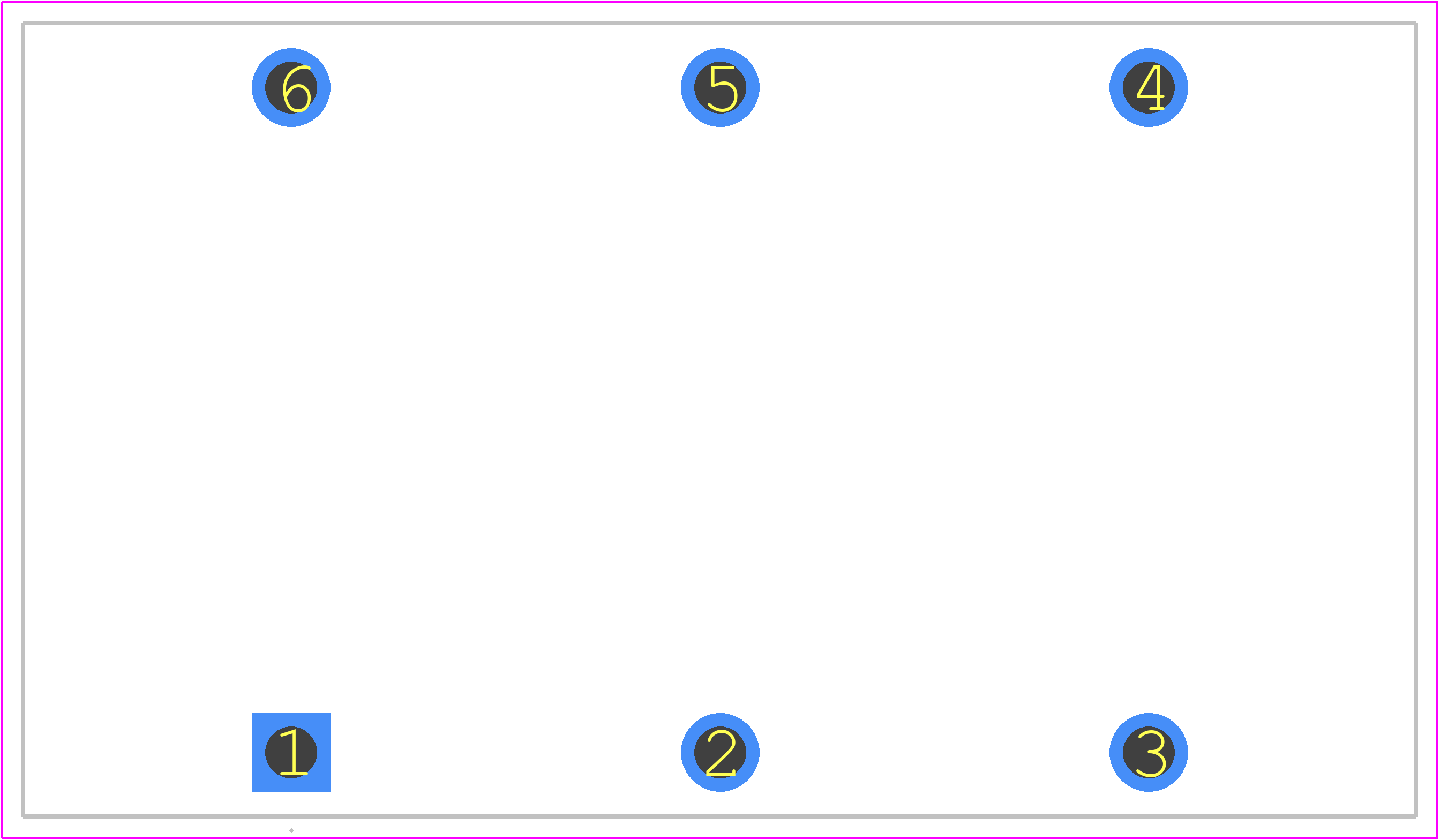

• Number of Terminals:

  6

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Height:

  66 mm

• Package Length:

  65 mm

• Package Style:

  Radial

• Package Width:

  37 mm

• Packing Method:

  Bulk

• Rated Current-Max:

  25 A

• Reference Standard:

  EN; VDE

• Shape/Size Description:

  RECTANGULAR PACKAGE

• Shielded:

  NO

• Special Feature:

  INDUCTANCE IS MEASURED AT 0.1 MILLI AMPERE

• Surface Mount:

  NO

• Terminal Finish:

  Tin (Sn)

• Terminal Placement:

  RADIAL

• Terminal Shape:

  WIRE

• Test Frequency:

  0.1 MHz

• Tolerance:

  50%
