B82806D0060A050 - TDK

Description: Transformers for DC-DC Converters, Active Clamp Forward, EFD20, 5V/12A

Download B82806D0060A050 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

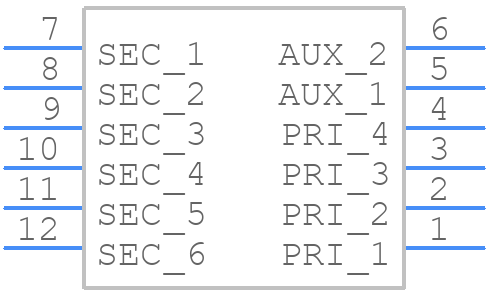

Symbol
B82806D0060A050 - TDK - PCB symbol
click to zoom

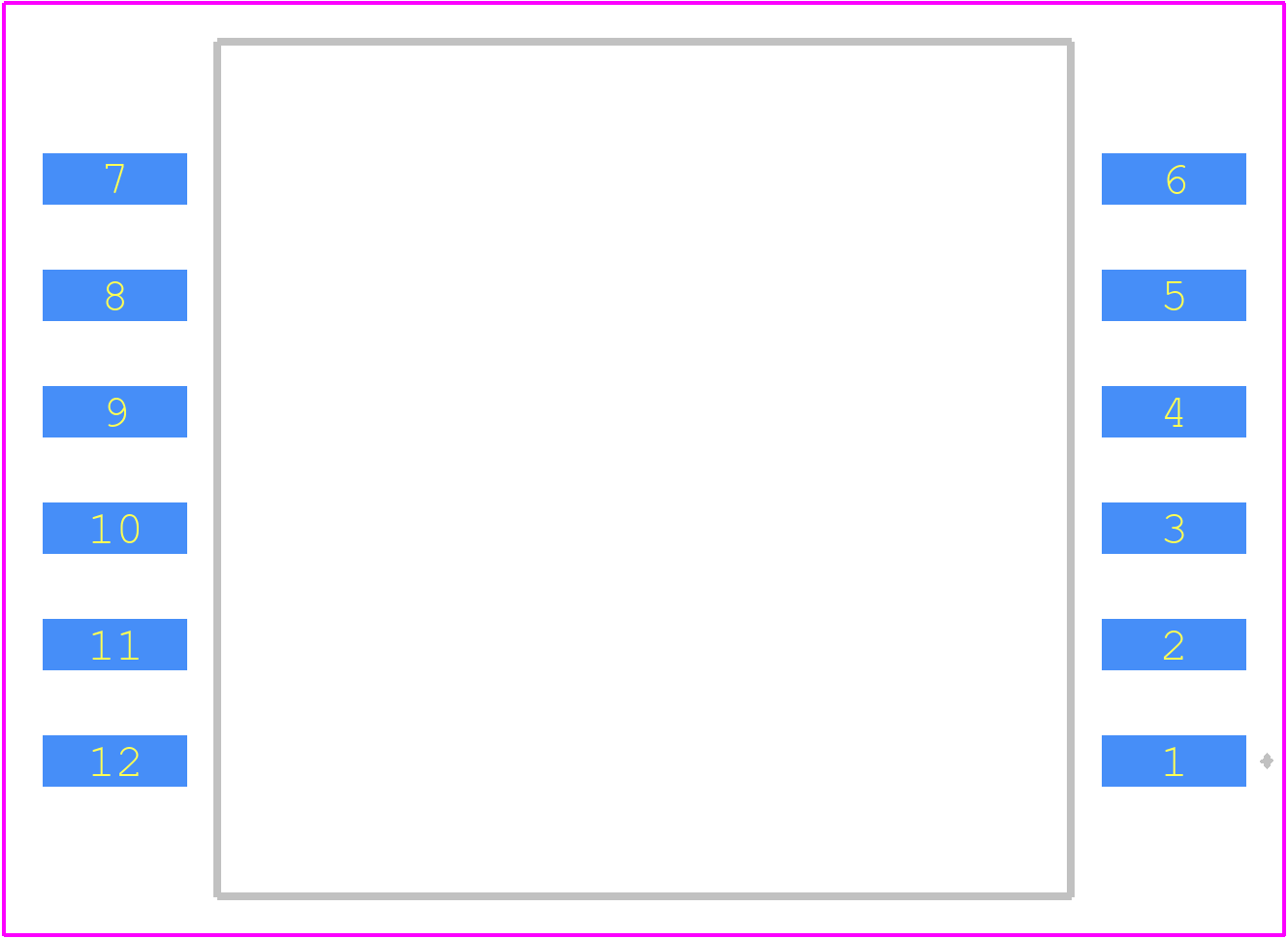

PCB Footprints
B82806D0060A050 - TDK PCB footprint - Other - Other - B82806D0060A050
click to zoom
3D Models
B82806D0060A050 - TDK - 3D model - Other - B82806D0060A050
click to zoom

B82806D0060A050 Details

  • Manufacturer Part Number:

    B82806D0060A050

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6.75

  • Additional Feature:

    LENGTH AND HEIGHT DIMENSION INCLUDE TERMINAL ALSO

  • Height:

    11.4 mm

  • Input Voltage-Max:

    72 V

  • Input Voltage-Min:

    36 V

  • Length:

    30 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    5 V

  • Packing Method:

    TR, BLISTER, 13 INCH

  • Power Rating:

    60 W

  • Primary Inductance:

    100 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    22 mm

B82806D0060A050 Frequently Asked Questions (FAQs)

  • TDK provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper performance and minimize parasitic effects.
  • While the datasheet provides some information on high-frequency characteristics, it's essential to consult TDK's application notes and simulation models to understand the inductor's behavior under specific switching conditions. Additionally, consider performing your own simulations and testing to validate the design.
  • The SRF is not explicitly stated in the datasheet, but it can be estimated using the inductor's L and C values. The SRF can affect the design by causing unwanted resonances and affecting the overall performance of the circuit. Consult TDK's application notes and simulation models to better understand the SRF and its implications.
  • The temperature coefficient is specified in the datasheet, but its impact on performance may not be immediately apparent. Consult TDK's application notes and simulation models to understand how the temperature coefficient affects the inductor's performance over temperature, and consider performing your own simulations and testing to validate the design.
  • While the datasheet provides a maximum current rating, it's essential to derate the current based on the specific application and operating conditions. Consult TDK's application notes and design guides for recommended derating factors to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B82806D0060A050 Overview

Use the download button to access the B82806D0060A050 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B8280, or try a keyword search, such as SMPS Transformers

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
