B88069X4880S102 footprint, schematic symbol and 3D model by TDK

Symbol

click to zoom

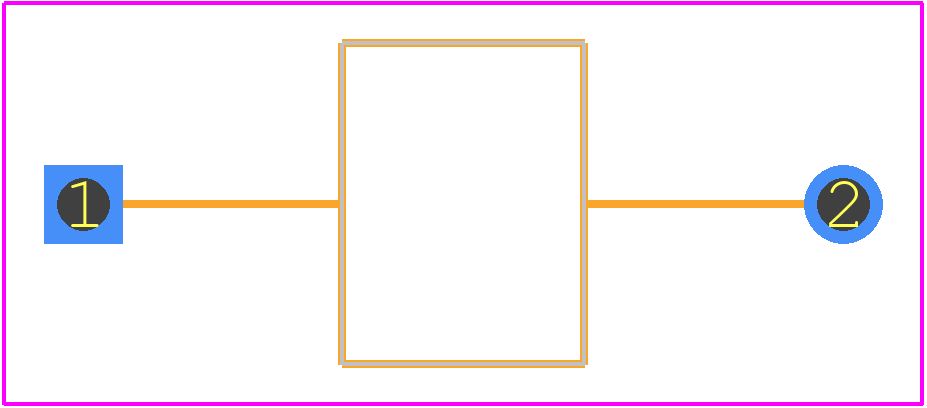

PCB Footprints

B88069X4880S102 - TDK PCB footprint - Other - Other - B88069X4880S102-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for B88069X4880S102
Part Number B88069X4880S102
Manufacturer TDK
Pin Count 2
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - B88069X4880S102-4
Released Date Jul 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

B88069X4880S102 Details

Manufacturer Part Number:
B88069X4880S102
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Package Description:
PACKAGE-2
Country Of Origin:
Mainland China, Malaysia
HTS Code:
8542.39.00.01
Factory Lead Time:
10 Weeks
Manufacturer:
TDK Corporation
YTEOL:
3
JESD-30 Code:
O-XALF-W2
JESD-609 Code:
e3
Number of Functions:
1
Number of Terminals:
2
Operating Temperature-Max:
90 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
ALF
Package Shape:
ROUND
Package Style:
LONG FORM
Peak Reflow Temperature (Cel):
260
Surface Mount:
NO
Telecom IC Type:
GAS DISCHARGE TUBE SUPPRESSOR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
WIRE
Terminal Position:
AXIAL
Time@Peak Reflow Temperature-Max (s):
10

B88069X4880S102 Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal performance of the B88069X4880S102 involves keeping the component away from high-frequency noise sources, using a solid ground plane, and minimizing the length of the traces connected to the component. A 4-layer PCB with a dedicated ground plane is recommended.
The B88069X4880S102 is designed to provide high-frequency noise suppression and EMI filtering. It uses a combination of inductors and capacitors to filter out high-frequency noise and electromagnetic interference, ensuring reliable operation in noisy environments.
The B88069X4880S102 has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including automotive, industrial, and consumer electronics.
Yes, the B88069X4880S102 is compatible with lead-free soldering processes, making it suitable for use in applications that require RoHS compliance.
The typical application circuit for the B88069X4880S102 involves connecting the component in a pi-filter configuration, with the input and output capacitors selected based on the specific application requirements.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

B88069X4880S102 Overview

Use the download button to access the B88069X4880S102 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like B8806, or try a keyword search, such as Telecom Protection Circuits

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
