A good PCB layout for BA3121 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
The choice of external components such as resistors, capacitors, and inductors depends on the specific application and operating frequency. ROHM provides a reference design and calculation formulas in the datasheet to help with component selection. Additionally, simulation tools like SPICE can be used to optimize component values.
The maximum power dissipation of the BA3121 is dependent on the operating conditions, such as supply voltage, output current, and ambient temperature. According to the datasheet, the maximum power dissipation is 1.5W. However, it's recommended to derate the power dissipation based on the specific application and thermal design.
To ensure stability and prevent oscillation, it's essential to follow the recommended PCB layout, choose the right external components, and ensure that the input and output capacitors are properly selected. Additionally, the datasheet provides guidelines for stability analysis and compensation techniques.
The recommended operating temperature range for the BA3121 is -40°C to +85°C. However, the device can operate up to +125°C with derated specifications. It's essential to consider the operating temperature range when designing the thermal management and reliability of the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BA3121 Overview

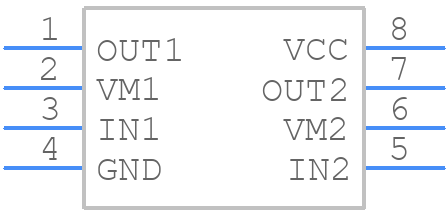

Use the download button to access the BA3121 schematic symbol, PCB footprint, and 3D model.
