ROHM recommends a 4-layer PCB with a solid ground plane and a separate power plane for the BA6110. The input and output pins should be placed on the top layer, and the decoupling capacitors should be placed as close as possible to the device.
To ensure stability, make sure to follow the recommended PCB layout, use a sufficient decoupling capacitor (at least 10uF), and keep the input and output impedance matched. Also, avoid using long wires or traces that can cause parasitic inductance.
The maximum power dissipation of the BA6110 is 1.5W. However, this value can be affected by the ambient temperature, PCB layout, and other factors. It's recommended to perform thermal simulations and testing to ensure the device operates within a safe temperature range.
The BA6110 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power dissipation and ensure proper heat sinking to prevent overheating.
To troubleshoot issues with the BA6110, start by checking the power supply voltage, input and output signals, and decoupling capacitors. Use an oscilloscope to verify the signal waveforms and check for any signs of oscillation or instability. Also, review the PCB layout and ensure it meets the recommended design guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BA6110 Overview

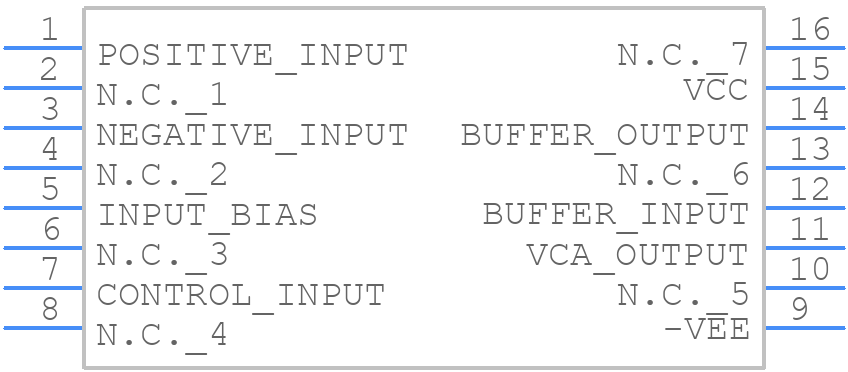

Use the download button to access the BA6110 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BA611,
or try a keyword search, such as Operational Amplifiers
