BA6124 - ROHM Semiconductor

Description: LED level meter driver, 5-point, VU scale

Download BA6124 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

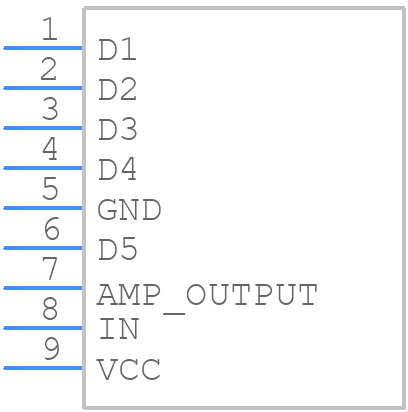

Symbol
BA6124 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BA6124 - ROHM Semiconductor PCB footprint - Other - Other - BA6124-1
click to zoom
3D Models
BA6124 - ROHM Semiconductor - 3D model - Other - BA6124-1
click to zoom

BA6124 Details

  • Manufacturer Part Number:

    BA6124

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SIP

  • Package Description:

    SIP-9

  • Pin Count:

    9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Additional Feature:

    BARGRAPH

  • Display Mode:

    SEGMENT

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PSIP-T9

  • Length:

    21.8 mm

  • Number of Functions:

    1

  • Number of Segments:

    5

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Equivalence Code:

    SIP9,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    7.2 mm

  • Supply Voltage-Nom:

    6 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2.8 mm

BA6124 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the BA6124 is 4.5V to 16V, although it can operate up to 18V with reduced performance.
  • To ensure stable operation in high-temperature environments, it is recommended to use a heat sink and ensure good thermal conductivity between the IC and the heat sink. Additionally, reducing the operating voltage and current can help reduce heat generation.
  • The maximum allowable power dissipation for the BA6124 is 1.5W, although this can vary depending on the operating conditions and ambient temperature.
  • Yes, the BA6124 can be used in switching regulator applications, but it is recommended to use an external switching transistor and to ensure that the IC is not subjected to excessive voltage or current stress.
  • To protect the BA6124 from overvoltage and overcurrent conditions, it is recommended to use external protection circuits such as voltage regulators, current limiters, and overvoltage protection devices.
