Description:1.0A Reversible Motor Drivers (Single Motor): The reversible motor driver for output 1.0A for 1 motor can set the output modes to four modes, normal, reverse, stop(idling), and braking in accordance with logic input (2 inputs).
A good PCB layout for the BA6287F-E2 involves placing the IC near the power source, using a solid ground plane, and keeping the input and output traces short and separate to minimize noise and electromagnetic interference (EMI).
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value, as specified in the datasheet. Additionally, the input voltage should be stable and within the recommended range.
The maximum ambient temperature for the BA6287F-E2 is 85°C, as specified in the datasheet. Operating the device above this temperature may affect its performance and reliability.
Yes, the BA6287F-E2 is suitable for high-reliability applications, such as automotive and industrial systems, due to its robust design, high-quality manufacturing process, and rigorous testing procedures.
To troubleshoot issues with the BA6287F-E2, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes or contact ROHM Semiconductor's technical support.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BA6287F-E2 Overview

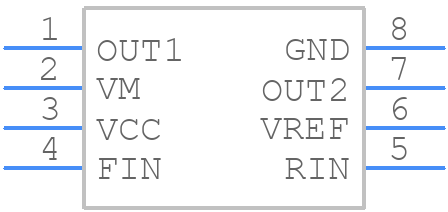

Use the download button to access the BA6287F-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BA628,
or try a keyword search, such as Motion Control Electronics
