BA6845FS - ROHM Semiconductor

Description: ROHM BA6845FS, Stepper Motor Driver IC, 9 V 1A 16-Pin, SSOP

Download BA6845FS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

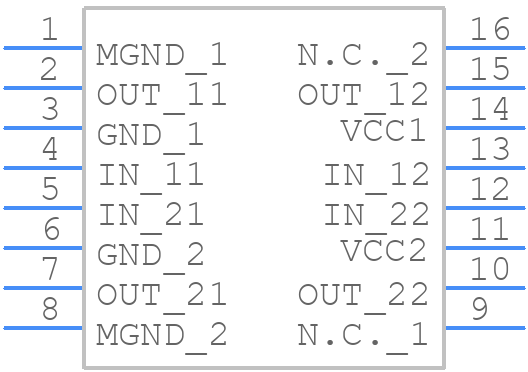

Symbol
BA6845FS - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BA6845FS - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SSOP-A16
click to zoom
3D Models
BA6845FS - ROHM Semiconductor - 3D model - Small Outline Packages - SSOP-A16
click to zoom

BA6845FS Details

  • Manufacturer Part Number:

    BA6845FS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3/e2

  • Length:

    6.6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SOP16,.25,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max (Isup):

    80 mA

  • Supply Voltage-Max (Vsup):

    9 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

BA6845FS Frequently Asked Questions (FAQs)

  • A good PCB layout for the BA6845FS involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the IC. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric is recommended.
  • The BA6845FS can handle a maximum input voltage of 18V. However, it is recommended to operate the IC within the specified input voltage range of 7V to 15V for optimal performance and reliability.
  • To protect the BA6845FS from overcurrent and overheating, it is recommended to add an external current limit resistor and a thermal protection circuit. The IC also has a built-in thermal shutdown feature that turns off the output when the junction temperature exceeds 150°C.
  • The BA6845FS is rated for operation up to 85°C ambient temperature. However, the IC's performance and reliability may degrade at higher temperatures. It is recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BA6845FS Overview

Use the download button to access the BA6845FS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BA684, or try a keyword search, such as Motion Control Electronics
