ROHM recommends a thermal pad size of at least 2mm x 2mm, with a minimum of 5 thermal vias (0.3mm diameter) connecting to a solid ground plane on the bottom layer. This ensures efficient heat dissipation and minimizes thermal resistance.
To ensure reliable operation in high-humidity environments, ROHM recommends applying a conformal coating to the device, following IPC-A-610 standards. Additionally, ensure the PCB is designed with a moisture-resistant finish and that the device is stored in a dry, nitrogen-filled environment when not in use.
ROHM recommends a soldering profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. The device should be soldered using a no-clean flux, and the soldering iron should be set to a temperature of 350°C (662°F) to 370°C (698°F).
Yes, the BAJ2DD0WHFP-TR is AEC-Q101 qualified, making it suitable for automotive applications. However, ensure that the device is used within the specified operating conditions and that the system design meets the required automotive standards.
ROHM recommends using a high-quality, low-ESR ceramic capacitor with a value of 4.7μF to 10μF, depending on the specific application requirements. The capacitor should be placed as close to the device as possible to minimize parasitic inductance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BAJ2DD0WHFP-TR Overview

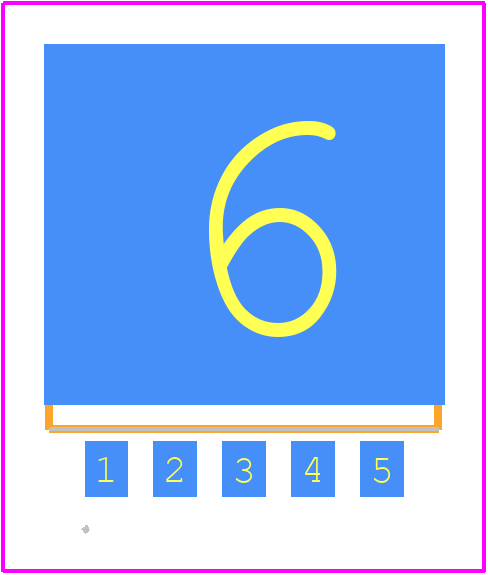

Use the download button to access the BAJ2DD0WHFP-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BAJ2D,
or try a keyword search, such as Linear Regulator ICs
