BAL99-7-F - Diodes Incorporated

Description: Diode 75 V 300mA Surface Mount SOT-23-3 Diodes - General Purpose, Power, Switching 75V 350mW

Download BAL99-7-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

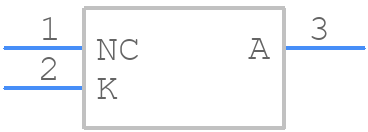

BAL99-7-F - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
BAL99-7-F - Diodes Incorporated PCB footprint - Other - Other - BAL99-7-F-4
click to zoom
3D Models
BAL99-7-F - Diodes Incorporated - 3D model - Other - BAL99-7-F-4
click to zoom

BAL99-7-F Details

  • Manufacturer Part Number:

    BAL99-7-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.70

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Application:

    GENERAL PURPOSE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.715 V

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    2 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Output Current-Max:

    0.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Dissipation-Max:

    0.35 W

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    75 V

  • Reverse Recovery Time-Max:

    0.004 µs

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30
