BAV170-EVL - Venkel

BAV170-EVL Details

• Manufacturer Part Number:

  BAV170-EVL

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOT-23, 3 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.70

• Manufacturer:

  VENKEL LTD

• YTEOL:

  6

• Additional Feature:

  LOW LEAKAGE CURRENT

• Application:

  GENERAL PURPOSE

• Breakdown Voltage-Min:

  75 V

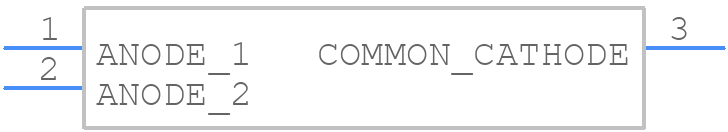

• Configuration:

  COMMON CATHODE, 2 ELEMENTS

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  1.25 V

• JESD-30 Code:

  R-PDSO-G3

• Moisture Sensitivity Level:

  1

• Non-rep Pk Forward Current-Max:

  4 A

• Number of Elements:

  2

• Number of Phases:

  1

• Number of Terminals:

  3

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  0.1 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR, EMBOSSED, 7 INCH

• Power Dissipation-Max:

  0.25 W

• Reference Standard:

  MIL-STD-750

• Rep Pk Reverse Voltage-Max:

  100 V

• Reverse Current-Max:

  0.08 µA

• Reverse Recovery Time-Max:

  3 µs

• Reverse Test Voltage:

  75 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL
