BAW56-7-F - Diodes Incorporated

Description: Diodes Inc BAW56-7-F, Dual SMT Switching Diode, Common Anode, 75V 300mA, 4ns, 3-Pin SOT-23

Download BAW56-7-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

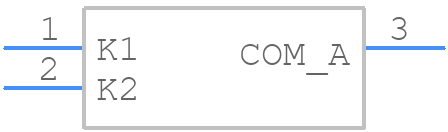

BAW56-7-F - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
BAW56-7-F - Diodes Incorporated PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - BAW56-7-F
click to zoom
3D Models
BAW56-7-F - Diodes Incorporated - 3D model - SOT23 (3-Pin) - BAW56-7-F
click to zoom

BAW56-7-F Details

  • Manufacturer Part Number:

    BAW56-7-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    3

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.70

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    6

  • Additional Feature:

    HIGH RELIABILITY

  • Application:

    GENERAL PURPOSE

  • Configuration:

    COMMON ANODE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    0.715 V

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    2 A

  • Number of Elements:

    2

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Output Current-Max:

    0.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Dissipation-Max:

    0.35 W

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    75 V

  • Reverse Recovery Time-Max:

    0.004 µs

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

BAW56-7-F Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for BAW56-7-F is a standard SOT23 package footprint with a minimum pad size of 0.8mm x 0.8mm and a thermal pad size of 2.5mm x 2.5mm.
  • To ensure reliable soldering of BAW56-7-F, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Avoid overheating the component and use a soldering technique that minimizes thermal stress.
  • The maximum operating temperature range for BAW56-7-F is -55°C to 150°C, but it's recommended to operate within -40°C to 125°C for optimal performance and reliability.
  • Yes, BAW56-7-F is suitable for high-frequency applications up to 1 GHz, but it's essential to consider the component's parasitic inductance and capacitance, as well as the PCB layout and design, to minimize signal degradation and ensure optimal performance.
  • To handle ESD protection for BAW56-7-F, follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the components in an ESD-protected environment. The device itself has a human body model (HBM) ESD rating of 2 kV.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BAW56-7-F Overview

Use the download button to access the BAW56-7-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BAW56, or try a keyword search, such as Rectifier Diodes
