BC358239A-INN-E4 - Qualcomm

Description: IC RF TXRX+MCU BLUETOOTH 96LFBGA

Download BC358239A-INN-E4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

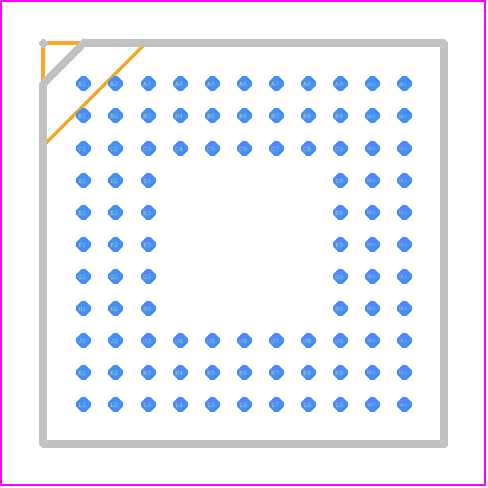

BC358239A-INN-E4 - Qualcomm PCB footprint - BGA - BGA - LFBGA 96-Ball Package
click to zoom
3D Models
BC358239A-INN-E4 - Qualcomm  - 3D model - BGA - LFBGA 96-Ball Package
click to zoom

BC358239A-INN-E4 Details

  • Manufacturer Part Number:

    BC358239A-INN-E4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Qualcomm

  • YTEOL:

    0

  • Boundary Scan:

    NO

  • Communication Protocol:

    ASYNC, BIT

  • JESD-30 Code:

    S-PBGA-B96

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    96

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA96,11X11,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • uPs/uCs/Peripheral ICs Type:

    SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

BC358239A-INN-E4 Frequently Asked Questions (FAQs)

  • Qualcomm provides a reference design guide for PCB layout and thermal management, which includes recommendations for component placement, thermal vias, and heat sink design. It's essential to follow these guidelines to ensure optimal performance and thermal management.
  • To optimize power consumption, it's crucial to understand the power modes and states of the device. Qualcomm provides guidelines on how to optimize power consumption by using low-power modes, dynamic voltage and frequency scaling, and power gating. Additionally, optimizing the system design, such as using low-power peripherals and minimizing idle time, can also help reduce power consumption.
  • The recommended settings for clock and PLL configuration can be found in the Qualcomm documentation and application notes. It's essential to follow these guidelines to ensure proper device operation and to avoid clock domain crossing issues.
  • Qualcomm provides a range of debugging tools and techniques, including serial console output, debug logs, and JTAG debugging. It's essential to have a solid understanding of the device's architecture and peripherals to effectively troubleshoot issues.
  • The BC358239A-INN-E4 has specific thermal and operating conditions, including temperature range, voltage, and humidity. It's essential to operate the device within these specified conditions to ensure reliable operation and to avoid damage.
