BC847BPDXV6T1G - onsemi

Description: S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECQ101 Qualified and PPAP Capable

Download BC847BPDXV6T1G Model

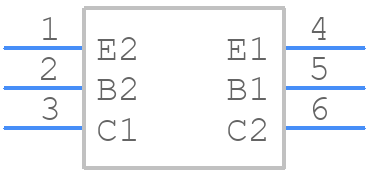

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BC847BPDXV6T1G - onsemi PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT−563, 6 LEAD
click to zoom
3D Models
BC847BPDXV6T1G - onsemi  - 3D model - SO Transistor Flat Lead - SOT−563, 6 LEAD
click to zoom

BC847BPDXV6T1G Details

  • Manufacturer Part Number:

    BC847BPDXV6T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-563, 6 LEAD

  • Pin Count:

    6

  • Manufacturer Package Code:

    463A-01

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    45 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.5 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    100 MHz

BC847BPDXV6T1G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the BC847BPDXV6T1G is -55°C to 150°C.
  • Yes, the BC847BPDXV6T1G is suitable for high-frequency applications up to 5 GHz due to its high transition frequency (fT) of 7 GHz.
  • The recommended storage temperature range for the BC847BPDXV6T1G is -55°C to 150°C.
  • Yes, the BC847BPDXV6T1G is lead-free and RoHS (Restriction of Hazardous Substances) compliant.
  • The typical current gain (hFE) of the BC847BPDXV6T1G is 100-400 at IC = 1 mA and VCE = 5 V.
