BC856BS - Nexperia

Description: BJT,PNP,dual,65V,100mA,TSSOP6 NXP BC856BS PNP Dual Bipolar Transistor, -100 mA -65 V, 6-Pin SOT-363

Download BC856BS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

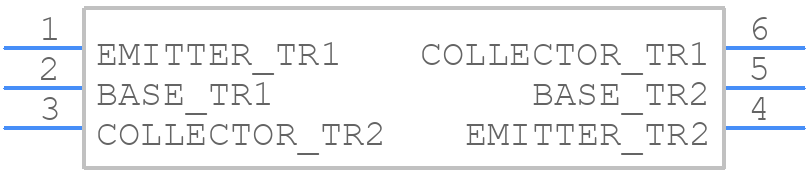

Symbol
BC856BS - Nexperia - PCB symbol
click to zoom
PCB Footprints
BC856BS - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-363 (SC-88)
click to zoom
3D Models
BC856BS - Nexperia - 3D model - SOT23 (6-Pin) - SOT-363 (SC-88)
click to zoom

BC856BS Details

  • Manufacturer Part Number:

    BC856BS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-88, 6 PIN

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    65 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Reference Standard:

    IEC-60134

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    100 MHz

BC856BS Frequently Asked Questions (FAQs)

  • The SOA is not explicitly stated in the datasheet, but it can be estimated based on the maximum ratings and thermal resistance. A safe operating area can be assumed to be within the boundaries of Vce = 30V, Ic = 1A, and Ptot = 500mW.
  • To ensure linear operation, the BC856BS should be biased in the active region, typically with a collector-emitter voltage (Vce) between 1V and 10V, and a base-emitter voltage (Vbe) around 0.65V to 0.75V. The base current should be limited to avoid saturation.
  • A good PCB layout for the BC856BS should minimize thermal resistance by using a large copper area for the collector pin, and keeping the base and emitter pins close together. A thermal via or a heat sink can be used to improve heat dissipation.
  • While the BC856BS is primarily designed for linear applications, it can be used in switching applications with some limitations. The transistor's switching speed is relatively slow (tf ≈ 10ns), and the collector-emitter saturation voltage (Vce(sat)) is around 0.2V. The maximum switching frequency should be limited to around 100kHz to avoid excessive power losses.
  • The BC856BS is rated for operation up to 150°C, but its performance will degrade with increasing temperature. The current gain (hFE) will decrease, and the collector-emitter saturation voltage (Vce(sat)) will increase. Ensure proper thermal management and derate the transistor's performance according to the temperature coefficient.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BC856BS Overview

Use the download button to access the BC856BS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BC856, or try a keyword search, such as Small Signal Bipolar Transistors
