The recommended PCB layout involves placing the module on a 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A heat sink or thermal interface material can also be used to improve thermal performance.
To ensure reliable start-up and shutdown, it's recommended to follow the recommended power-up and power-down sequences outlined in the datasheet, and to use a soft-start circuit to limit inrush current.
Operating the module outside of the recommended input voltage range can affect its efficiency, reliability, and stability. It's recommended to operate the module within the specified input voltage range to ensure optimal performance and reliability.
To troubleshoot common issues, check the input voltage, output voltage, and current levels, and ensure that the module is properly cooled. Also, verify that the module is properly configured and that the input and output capacitors are properly selected.
The module is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. To ensure compliance, follow proper PCB layout and shielding guidelines, and use EMI filters and shielding components as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BCM384F480T325B00 Overview

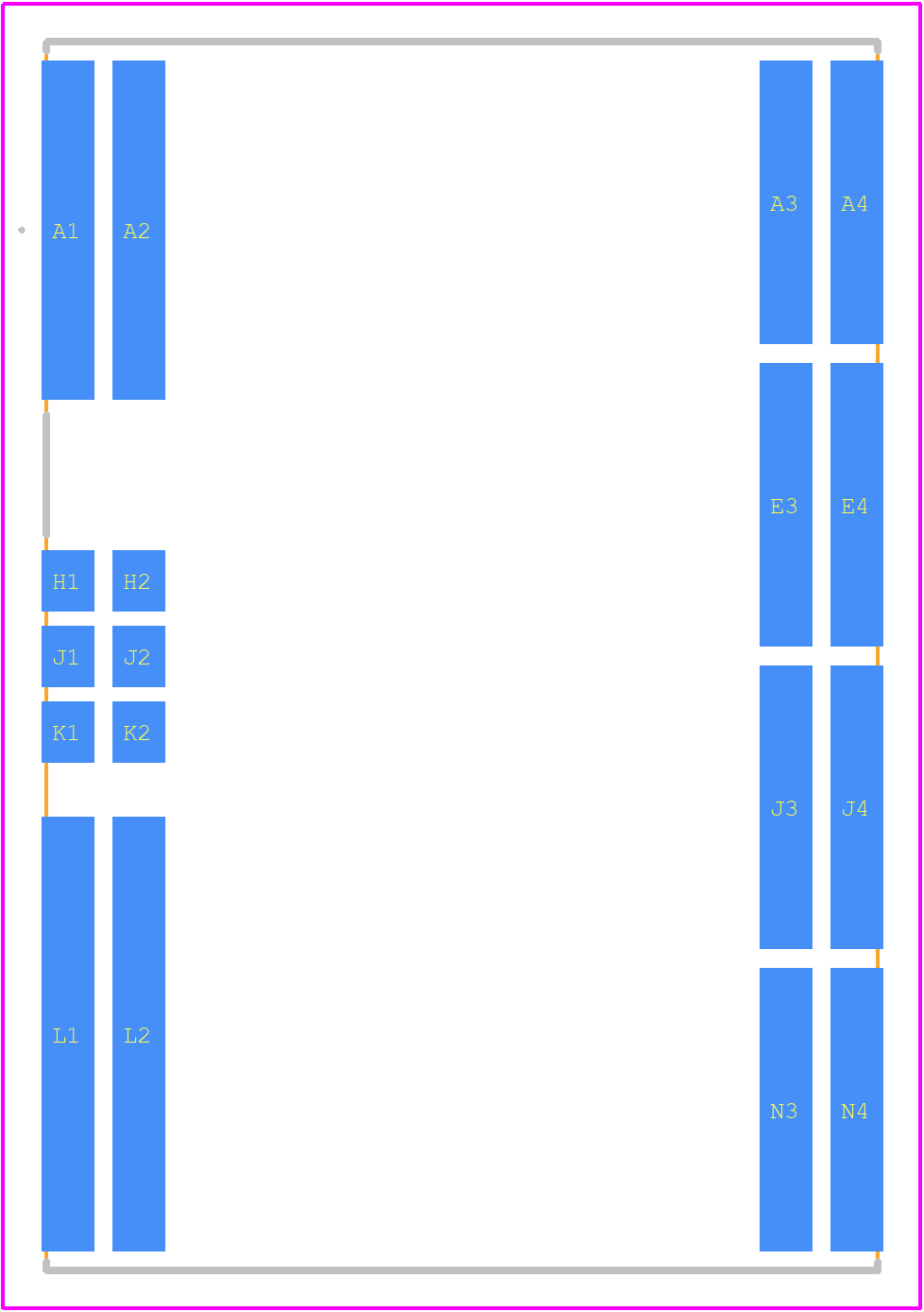

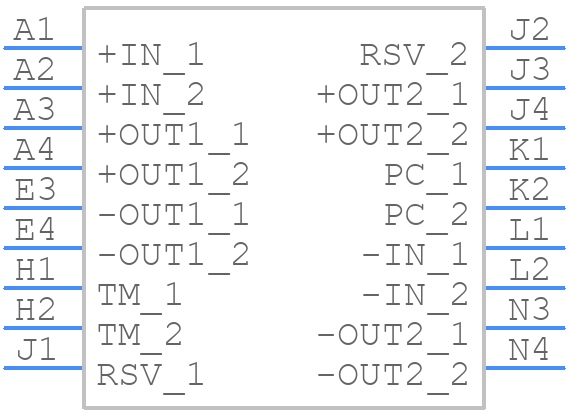

Use the download button to access the BCM384F480T325B00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCM38,
or try a keyword search, such as Power Supply Modules
