The recommended PCB layout involves placing the module on a 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A heat sink or thermal interface material can also be used to improve thermal management.
To ensure reliable start-up and shutdown, it's recommended to follow a soft-start sequence, gradually increasing the input voltage and current. Additionally, a voltage supervisor or power-on reset circuit can be used to ensure the module is fully powered up before enabling the output.
Operating the module outside of the recommended input voltage range can affect its efficiency, reliability, and output voltage regulation. It's recommended to operate the module within the specified input voltage range to ensure optimal performance and prevent damage to the module.
To troubleshoot issues with the module's output voltage or current, check the input voltage, output load, and module temperature. Verify that the module is properly configured and that the output is not overloaded. Use an oscilloscope to measure the output voltage and current waveforms to identify any anomalies.
The module is designed to meet CISPR 22 Class B EMI standards. To minimize EMI and RFI, use a shielded enclosure, keep the module away from sensitive circuits, and use EMI filters or shielding on the input and output lines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BCM384P120T800AC0 Overview

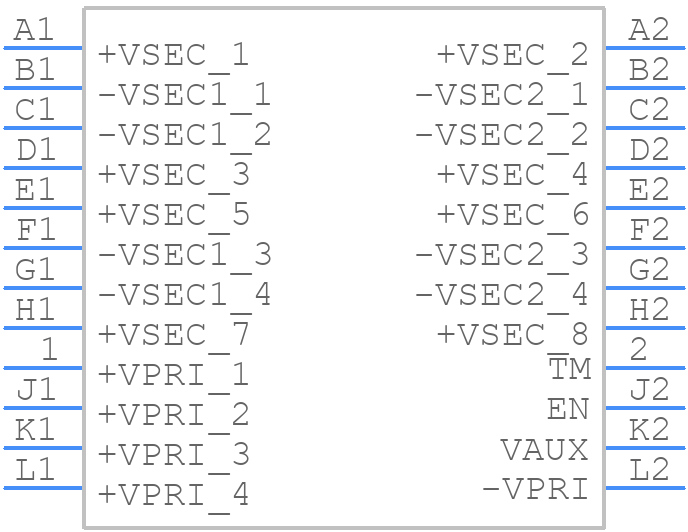

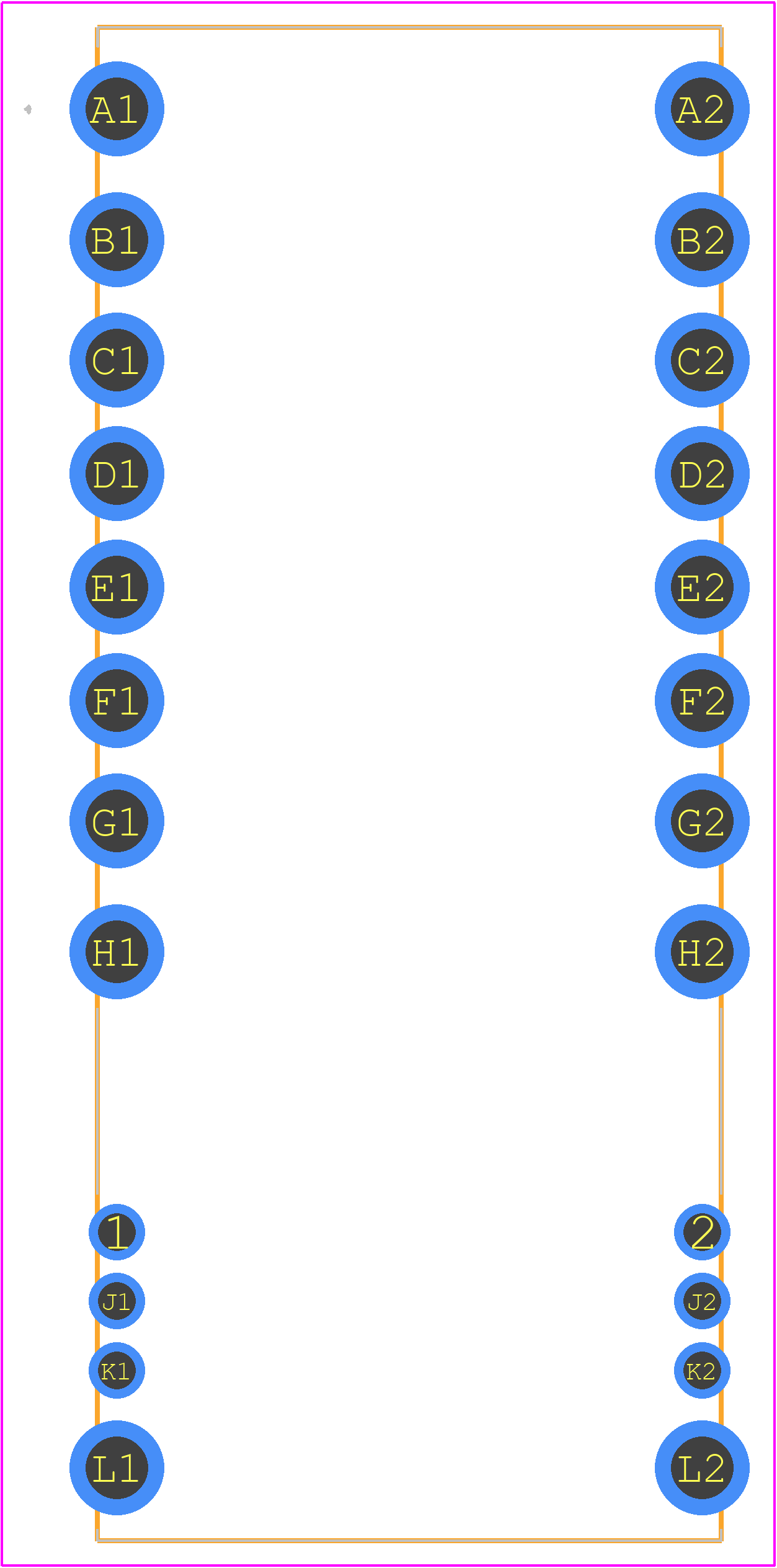

Use the download button to access the BCM384P120T800AC0 schematic symbol, PCB footprint, and 3D model.
