The recommended PCB layout involves placing the module on a 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A heat sink or thermal interface material can also be used to improve thermal performance.
To ensure reliable start-up and shutdown, it is recommended to follow a soft-start sequence, gradually increasing the input voltage to the module. Additionally, a voltage supervisor or power-on reset circuit can be used to ensure the module is fully powered up before enabling the output.
Input voltage transients can affect the module's performance and reliability. It is recommended to use input filtering and transient protection devices, such as TVS diodes, to mitigate the effects of voltage transients.
To optimize efficiency, it is recommended to select the optimal input voltage range, adjust the output voltage to the minimum required, and use the module's built-in power-saving features, such as dynamic voltage scaling.
The module's power rating must be derated for high-temperature operation. The datasheet provides thermal derating curves, and it is recommended to consult with Vicor's application engineers for specific guidance on thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BCM4414BG0F4440C06 Overview

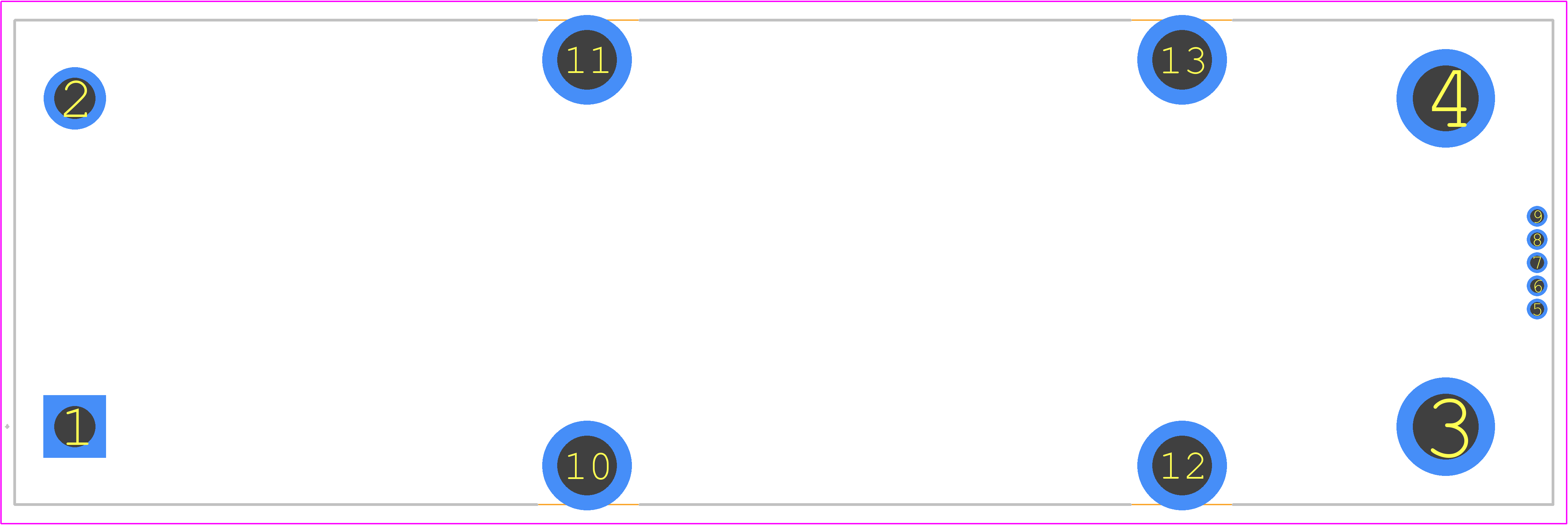

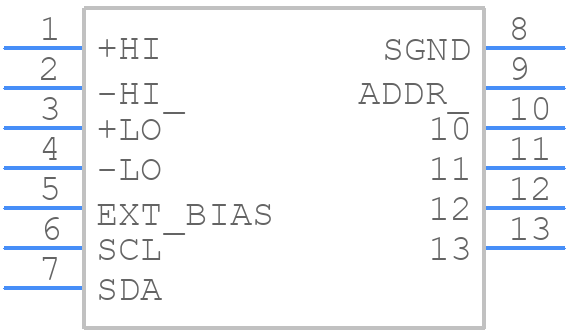

Use the download button to access the BCM4414BG0F4440C06 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCM44,
or try a keyword search, such as Power Supply Modules
