BCM4414BG0F4440T10 footprint, schematic symbol and 3D model by VICOR

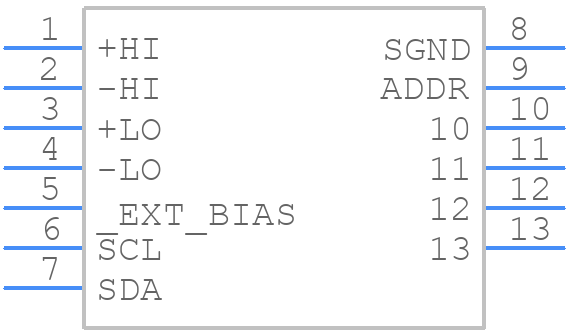

Symbol

click to zoom

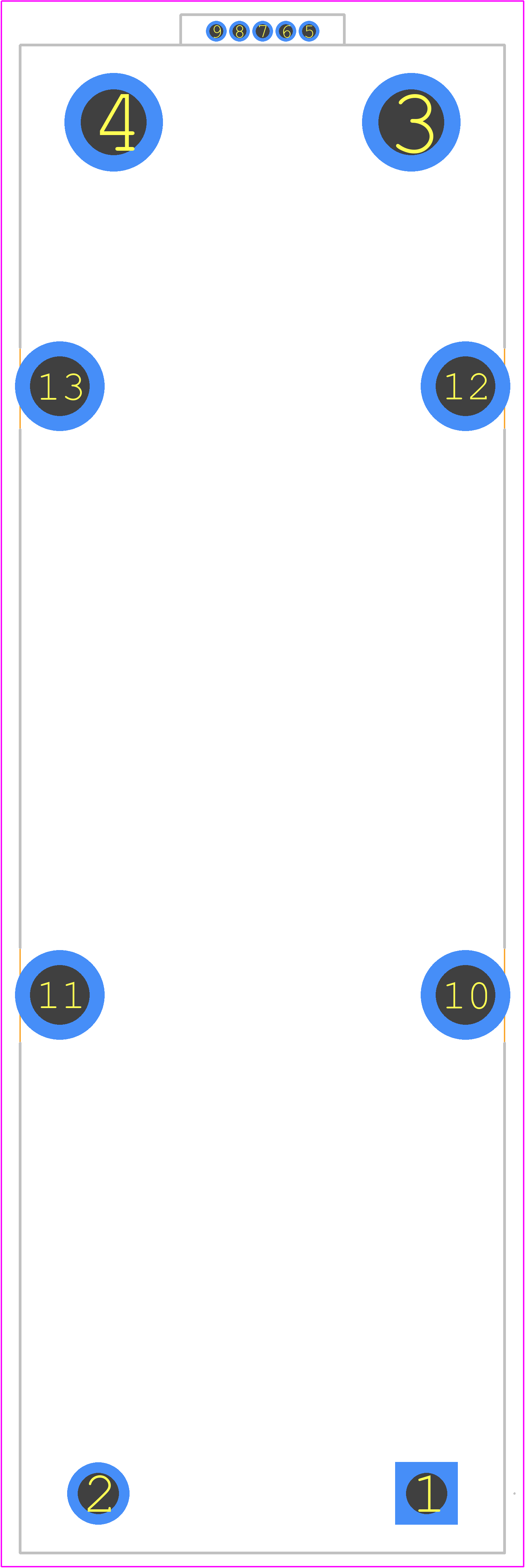

PCB Footprints

BCM4414BG0F4440T10 - VICOR PCB footprint - Other - Other - BCM4414BG0F4440T10-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BCM4414BG0F4440T10
Part Number BCM4414BG0F4440T10
Manufacturer VICOR
Pin Count 13
Part Category Power Supply
Package Category Other
Footprint Name Other - BCM4414BG0F4440T10-1
Released Date Nov 21, 2023
Last Modified Date Nov 22, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

BCM4414BG0F4440T10 Details

Manufacturer Part Number:
BCM4414BG0F4440T10
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
Module-9
ECCN Code:
EAR99
Factory Lead Time:
28 Weeks
Manufacturer:
Vicor Corporation
YTEOL:
7
Analog IC - Other Type:
DC-DC UNREGULATED POWER SUPPLY MODULE
Input Voltage-Max:
700 V
Input Voltage-Min:
400 V
Input Voltage-Nom:
544 V
JESD-30 Code:
R-XDMA-P9
JESD-609 Code:
e3
Length:
112.76 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
9
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
43.8 V
Output Voltage-Min:
25 V
Output Voltage-Nom:
34 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
9.781 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Finish:
Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
1360 W
Trim/Adjustable Output:
YES
Width:
35.54 mm

BCM4414BG0F4440T10 Frequently Asked Questions (FAQs)

Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
Vicor provides guidelines for capacitor selection in their datasheet and application notes. The selection depends on the specific application, input voltage, and output current requirements. It's recommended to consult with Vicor's technical support or a qualified engineer for specific guidance.
The BCM4414BG0F4440T10 has an operating temperature range of -40°C to +125°C. However, the maximum operating temperature range may vary depending on the specific application and derating requirements. It's recommended to consult with Vicor's technical support for specific guidance.
Vicor provides guidelines for EMC and EMI compliance in their application notes and datasheet. It's recommended to follow these guidelines and consult with a qualified engineer or Vicor's technical support to ensure compliance with relevant standards and regulations.
Vicor provides guidelines for soldering and rework processes in their application notes and datasheet. It's recommended to follow these guidelines to ensure reliable assembly and rework of the module.

Trust Checks

Community Provided

System Verified

Community Approved

BCM4414BG0F4440T10 Overview

Use the download button to access the BCM4414BG0F4440T10 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BCM44, or try a keyword search, such as Power Supply Modules
