Part Image

BCM4414BH0E5035M06 - VICOR

Description: Bus Converter Module DC DC Converter 1 Output 40.6V 35A 500V - 800V Input ,-55°C ~ 100°C , 4.3 kV

Download BCM4414BH0E5035M06 Model

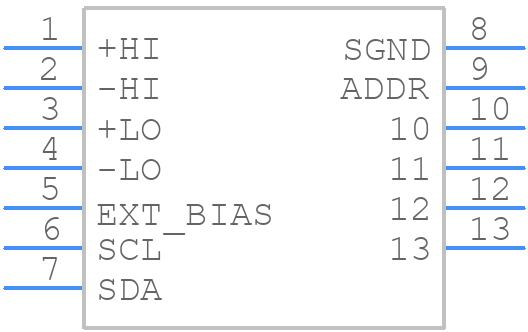

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

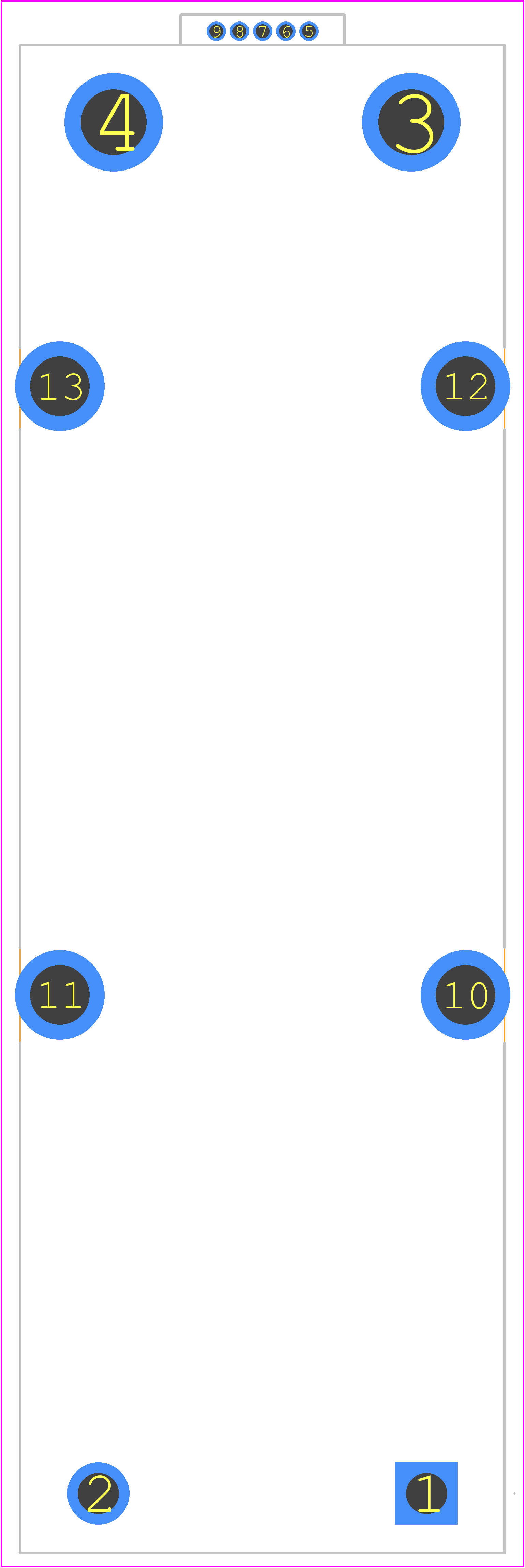

BCM4414BH0E5035M06 - VICOR PCB footprint - Other - Other - BCM4414BH0E5035M06-1
click to zoom
3D Models
BCM4414BH0E5035M06 - VICOR  - 3D model - Other - BCM4414BH0E5035M06-1
click to zoom

BCM4414BH0E5035M06 Details

  • Manufacturer Part Number:

    BCM4414BH0E5035M06

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

BCM4414BH0E5035M06 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor provides guidance on capacitor selection in their datasheet and application notes. The selection depends on factors such as input voltage, output voltage, and desired ripple current. It's recommended to consult with Vicor's technical support or a qualified engineer for specific guidance.
  • The maximum allowable ripple current for the input and output capacitors is not explicitly stated in the datasheet. However, Vicor recommends following the capacitor manufacturer's guidelines and performing thermal derating calculations to ensure the capacitors can handle the expected ripple current.
  • Vicor recommends implementing OVP and UVP using external circuitry, such as voltage supervisors or comparators, to ensure the module operates within its specified voltage range. The specific implementation depends on the system requirements and design constraints.
  • Vicor recommends following a controlled startup sequence to ensure the module powers up correctly. The specific sequence and timing depend on the system requirements and design constraints. It's recommended to consult with Vicor's technical support or a qualified engineer for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BCM4414BH0E5035M06 Overview

Use the download button to access the BCM4414BH0E5035M06 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCM44, or try a keyword search, such as Power Supply Modules
