The recommended PCB layout involves placing the module on a 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A heat sink or thermal interface material can also be used to improve thermal performance.
To ensure reliable start-up and shutdown, it's recommended to follow a soft-start sequence, gradually increasing the input voltage to the module. Additionally, a slow shutdown sequence can help prevent voltage spikes and ensure safe shutdown.
The module is designed to operate within a specific input voltage range. Operating outside of this range can affect the module's efficiency, output voltage regulation, and reliability. It's essential to ensure the input voltage is within the recommended range to guarantee optimal performance.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure proper thermal management. Use oscilloscopes or other diagnostic tools to analyze the module's behavior and identify the root cause of the issue.
The module is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. To minimize EMI and RFI, use a shielded enclosure, keep cables and wires away from the module, and ensure proper grounding and decoupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BCM48BF240T300A00 Overview

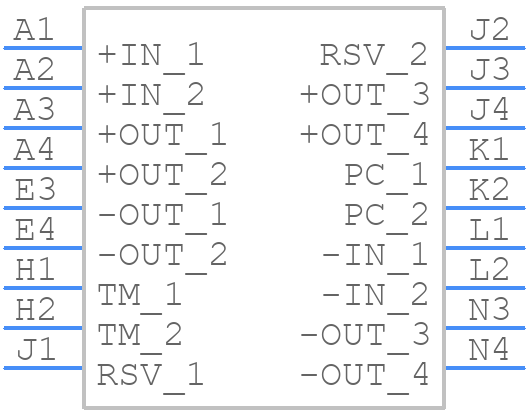

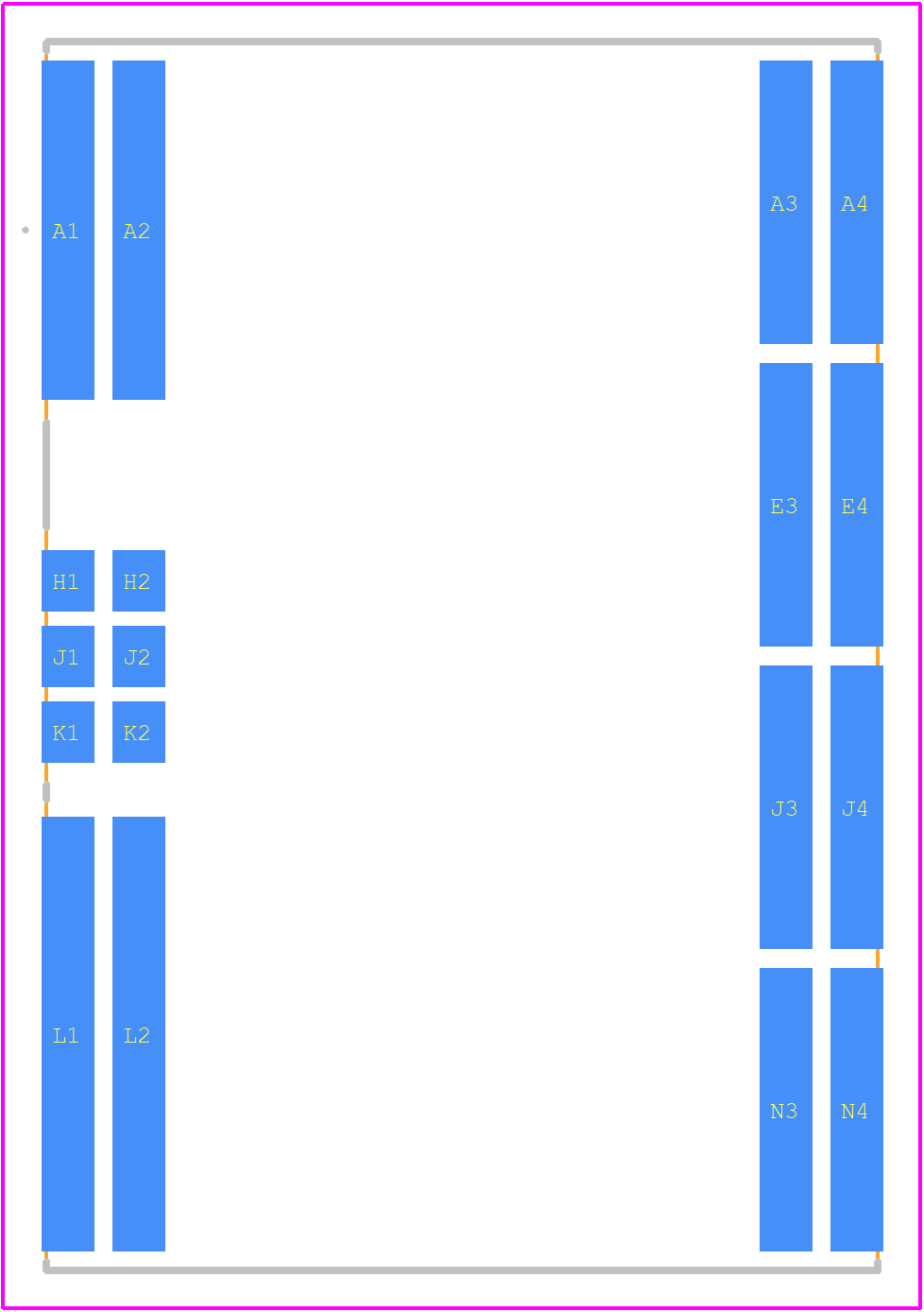

Use the download button to access the BCM48BF240T300A00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCM48,
or try a keyword search, such as Power Supply Modules
