BCM48BF320T300A00 - VICOR

Description: Isolated DC/DC Converters 300 W Isolated DC DC Converter

Download BCM48BF320T300A00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BCM48BF320T300A00 - VICOR - PCB symbol
click to zoom
PCB Footprints

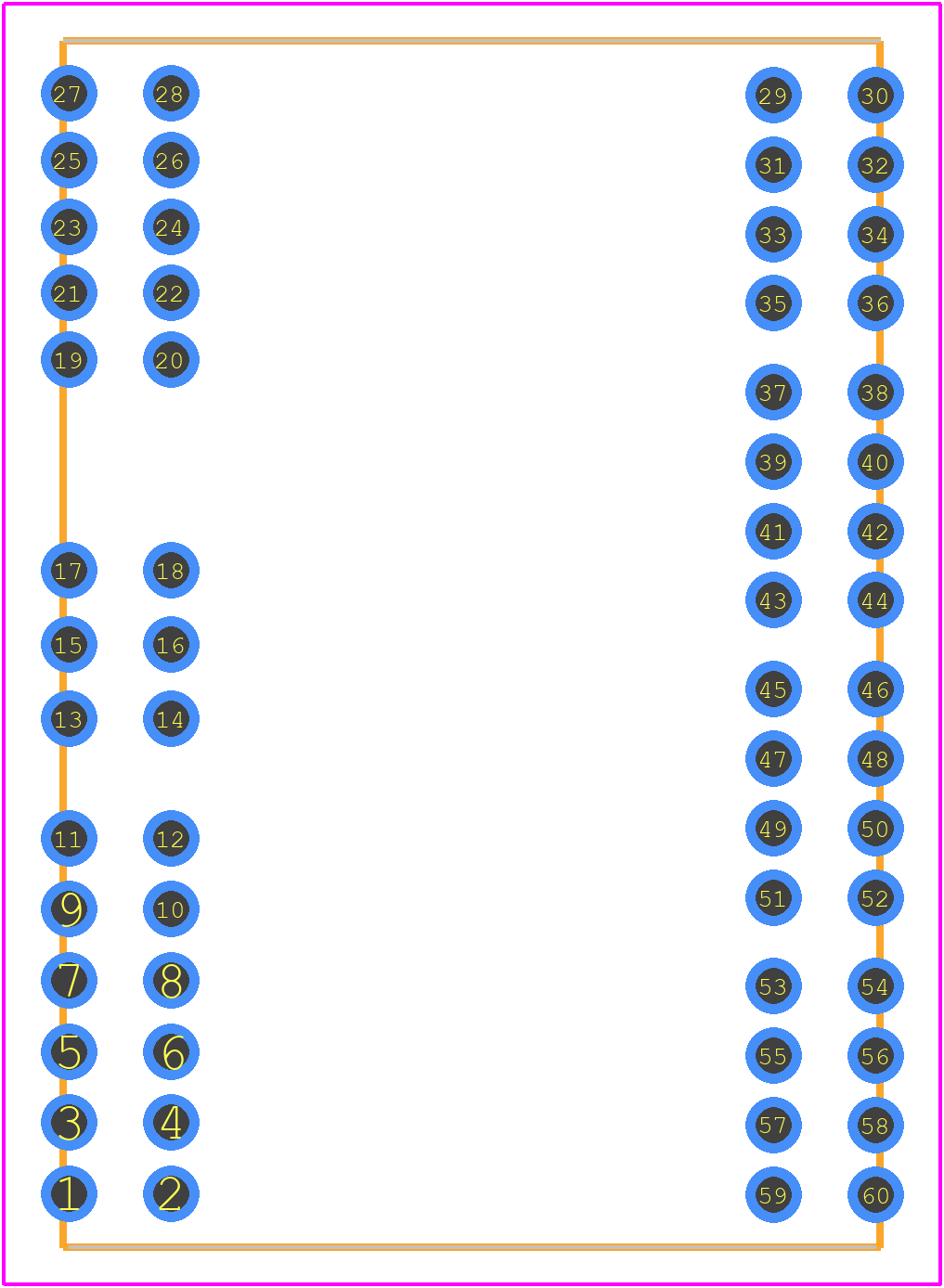

BCM48BF320T300A00 - VICOR PCB footprint - Other - Other - BCM48BF320T300A00-1
click to zoom
3D Models
BCM48BF320T300A00 - VICOR - 3D model - Other - BCM48BF320T300A00-1
click to zoom

BCM48BF320T300A00 Details

  • Manufacturer Part Number:

    BCM48BF320T300A00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-60

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC UNREGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, TUV

  • Control Mode:

    VOLTAGE-MODE

  • Efficiency (Main Output):

    94.5%

  • Input Voltage-Max:

    55 V

  • Input Voltage-Min:

    38 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XQMA-J60

  • JESD-609 Code:

    e4

  • Length:

    32.5 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    60

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    11.75 A

  • Output Voltage-Max:

    36.7 V

  • Output Voltage-Min:

    25.3 V

  • Output Voltage-Nom:

    32 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Protections:

    OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL

  • Ripple Voltage (Main Out):

    0.17675 Vrms

  • Seated Height-Max:

    6.98 mm

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1630 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    J BEND

  • Terminal Position:

    UNSPECIFIED

  • Total Power Output-Max:

    375 W

  • Trim/Adjustable Output:

    NO

  • Width:

    22 mm
