BCM48BT160T240A00 - VICOR

Description: Isolated DC/DC Converters BCM2 48385516.0240 W

Download BCM48BT160T240A00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BCM48BT160T240A00 - VICOR - PCB symbol
click to zoom
PCB Footprints

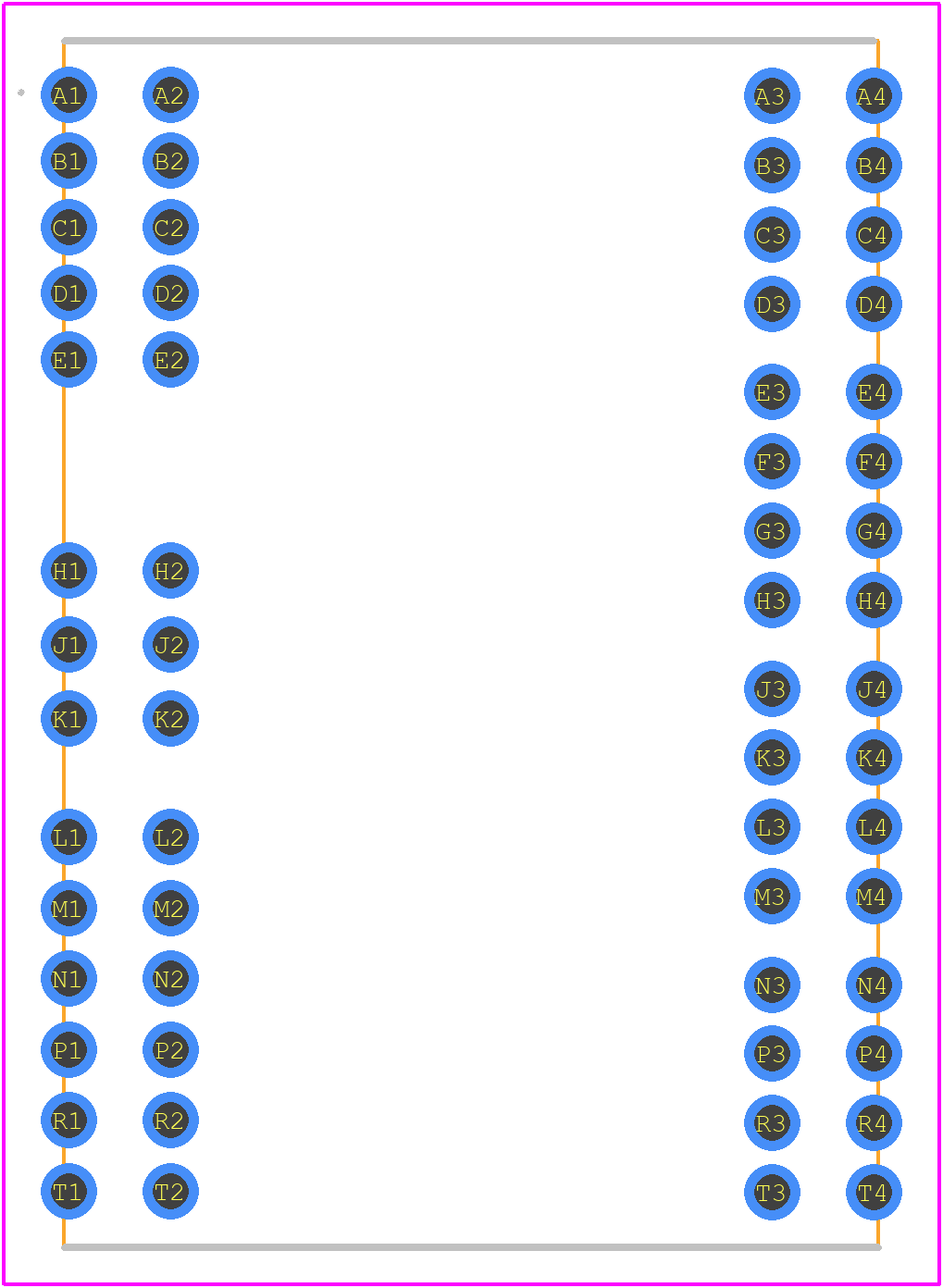

BCM48BT160T240A00 - VICOR PCB footprint - Other - Other - BCM48BT160T240A00-2
click to zoom
3D Models
BCM48BT160T240A00 - VICOR - 3D model - Other - BCM48BT160T240A00-2
click to zoom

BCM48BT160T240A00 Details

  • Manufacturer Part Number:

    BCM48BT160T240A00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-60

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    55 V

  • Input Voltage-Min:

    38 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XQMA-T60

  • Length:

    32.5 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    60

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    18.3 V

  • Output Voltage-Min:

    12.7 V

  • Output Voltage-Nom:

    16 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    6.98 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    QUAD

  • Total Power Output-Max:

    240 W

  • Trim/Adjustable Output:

    NO

  • Width:

    22 mm

BCM48BT160T240A00 Frequently Asked Questions (FAQs)

  • Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
  • Vicor provides guidelines for capacitor selection in their datasheet and application notes. The selection depends on the specific application, input voltage, and output current requirements. It's recommended to consult with Vicor's technical support or a qualified engineer for specific guidance.
  • The maximum allowable ripple current for the input and output capacitors is not explicitly stated in the datasheet. However, Vicor recommends following the capacitor manufacturer's guidelines for ripple current ratings and derating factors. It's also recommended to consult with Vicor's technical support for specific guidance.
  • Vicor provides guidelines for overcurrent protection and fault detection in their application notes and datasheet. The module has built-in overcurrent protection, but additional external circuitry may be required for fault detection and protection. It's recommended to consult with Vicor's technical support or a qualified engineer for specific guidance.
  • Vicor provides guidelines for startup and shutdown sequences in their application notes and datasheet. The recommended sequence involves slowly ramping up the input voltage and enabling the output voltage in a specific order to prevent damage to the module and ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BCM48BT160T240A00 Overview

Use the download button to access the BCM48BT160T240A00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCM48, or try a keyword search, such as Power Supply Modules
