Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink.
To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a shutdown circuit to discharge the output capacitors. The datasheet provides guidelines for these circuits.
The BCM48BT240T300A00 is designed to operate within a specific input voltage range. Operating outside this range may affect efficiency, output voltage regulation, and reliability. Vicor recommends using input voltage filtering and regulation to ensure compliance with the recommended input voltage range.
Vicor recommends using a systematic approach to troubleshooting, including checking input voltage, output voltage, and current, as well as monitoring the module's temperature and fault signals. Vicor's application notes and technical support resources can also provide guidance.
The BCM48BT240T300A00 is designed to meet CISPR 22 and FCC Part 15 Class B EMI standards. However, the system designer should ensure that the module is properly shielded, and that the PCB layout and component selection minimize EMI radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BCM48BT240T300A00 Overview

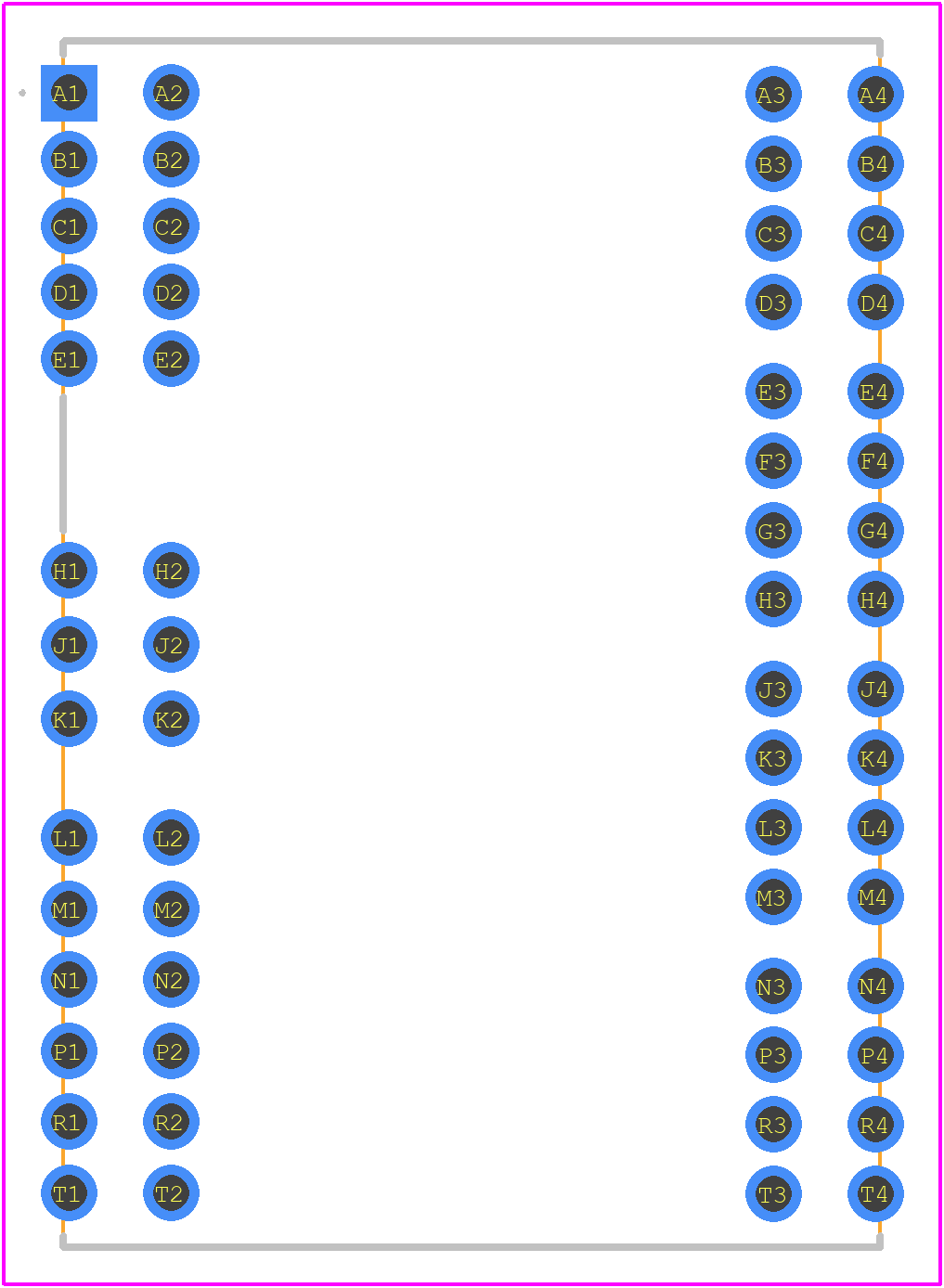

Use the download button to access the BCM48BT240T300A00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCM48,
or try a keyword search, such as Power Supply Modules
