BCM48BT480T300A00 footprint, schematic symbol and 3D model by VICOR

Symbol

click to zoom

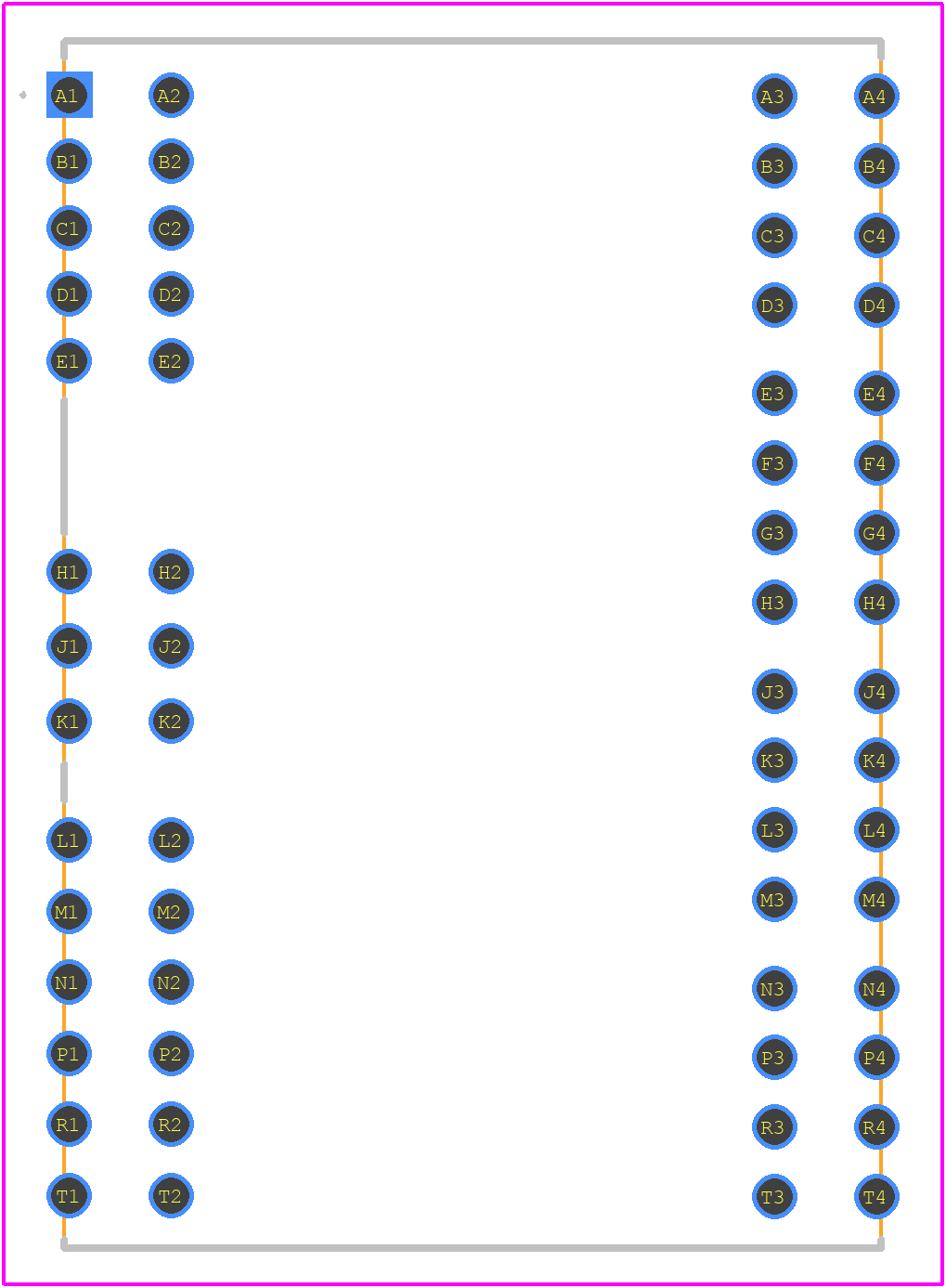

PCB Footprints

BCM48BT480T300A00 - VICOR PCB footprint - Other - Other - BCM48BT480T300A00-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BCM48BT480T300A00
Part Number BCM48BT480T300A00
Manufacturer VICOR
Pin Count 60
Part Category Power Supply
Package Category Other
Footprint Name Other - BCM48BT480T300A00-2
Released Date Jul 16, 2026
Last Modified Date Jul 16, 2026 8:07 AM UTC
Pinout / Pin List Click Here (Member Only)

BCM48BT480T300A00 Details

Manufacturer Part Number:
BCM48BT480T300A00
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-60
ECCN Code:
EAR99
Factory Lead Time:
28 Weeks
Manufacturer:
Vicor Corporation
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
55 V
Input Voltage-Min:
38 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-XQMA-T60
Length:
32.5 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
60
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
55 V
Output Voltage-Min:
38 V
Output Voltage-Nom:
48 V
Package Body Material:
UNSPECIFIED
Package Code:
QMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
6.98 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
THROUGH-HOLE
Terminal Position:
QUAD
Total Power Output-Max:
300 W
Trim/Adjustable Output:
NO
Width:
22 mm

BCM48BT480T300A00 Frequently Asked Questions (FAQs)

Vicor provides a reference design guide and thermal management guidelines in their application notes and whitepapers. It's recommended to follow these guidelines to ensure optimal performance and thermal management.
Vicor provides guidelines for capacitor selection in their datasheet and application notes. The selection depends on the specific application, input voltage, and output current requirements. It's recommended to consult with Vicor's technical support or a qualified engineer for specific guidance.
The maximum allowable ripple current for the input and output capacitors is not explicitly stated in the datasheet. However, Vicor recommends following the capacitor manufacturer's guidelines for ripple current ratings and derating factors to ensure reliable operation.
Vicor provides guidelines for overcurrent protection and fault detection in their application notes and datasheets. It's recommended to use external circuitry, such as current sense resistors and comparators, to detect overcurrent conditions and implement fault detection mechanisms.
Vicor recommends a specific startup and shutdown sequence to ensure reliable operation and prevent damage to the module. This sequence is typically outlined in the datasheet or application notes.

Trust Checks

Community Provided

System Verified

Community Approved

BCM48BT480T300A00 Overview

Use the download button to access the BCM48BT480T300A00 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like BCM48, or try a keyword search, such as Power Supply Modules
